Limplus Immersible Ultrasonic Transducer & Generator
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, DHL/UPS/TNT/Fedex
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China, Shenzhen |
|---|---|
| Productivity: | 200 piece per day |
| Supply Ability: | 200 piece per day |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB |
| Certificate: | CE |
| Transportation: | Ocean,Land,Air,DHL/UPS/TNT/Fedex |
Product Description
Product Description
submersible ultrasonic transducer powerful ultrasonic generator and transducer
SUS stainless steel housing Hard-Cr plating Treatment ( 20 + microns )
Adaptable for continuous operation
Adjustable ultrasonic power

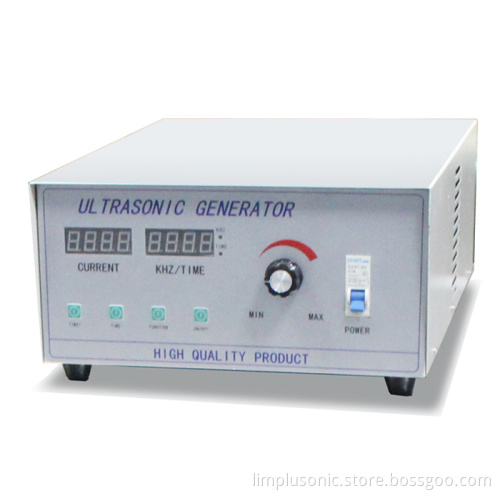

With separate control ultrasonic electronic generator
Custom made size is available
Transducer no./transducer box: range[6pcs~40pcs per box]
Ultrasonic power: range[300W~2000W]
Ultrasonic frequency: 28KHZ/40KHz
more details:
Limplus immersible ultrasonic transducer box-embedded in your existing tank.
good quality-custom made size-chemicals resistance-moveable-convenient install

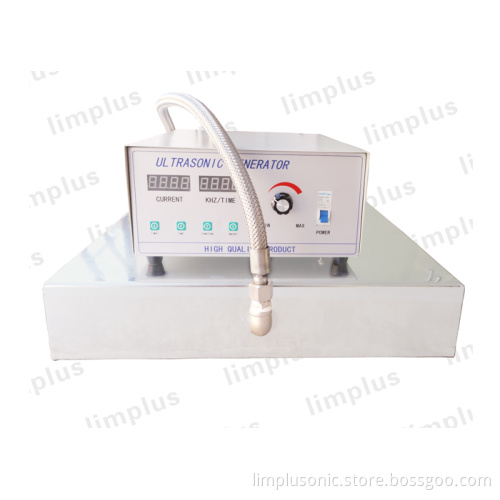

T series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.
packing and delivery:
pack by box or wooden case
delivery detail: 10-15 days
customized size
1 year warranty--- free parts can be sent if any quality problem
Ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank.

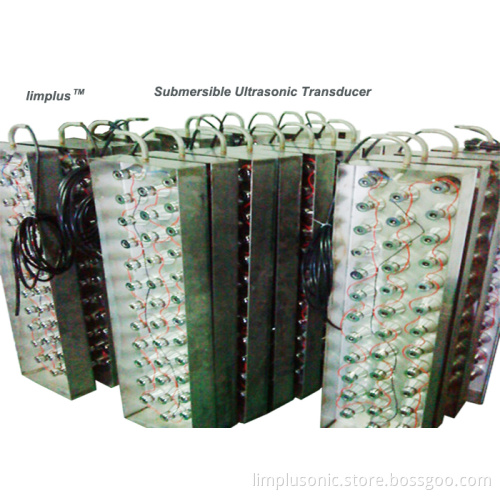

Limplus submersible ultrasonic cleaner transducer & generator
| Model (T series) | LS-06T | LS-12T | LS-18T | LS-24T | LS-30T | LS-36T | |||
| Ultrasonic transducer box size (mm) | L | 305 | 355 | 406 | 500 | 550 | 500 | ||
| W | 250 | 305 | 305 | 355 | 406 | 460 | |||
| H | 100 | 100 | 100 | 100 | 100 | 100 | |||
| Housing material | SUS304/SUS316L | ||||||||
| Surface finishing | Hard-Cr plating treatment (20+microns) | ||||||||
| Ultrasonic frequency | 28KHz / 40KHz | ||||||||
| Ultrasonic transducers | 6pcs | 12pcs | 18pcs | 24pcs | 30pcs | 36pcs | |||
| Ultrasonic power | 300W | 600W | 900W | 1200W | 1500W | 1800W | |||
| Electronic generator | KG300 | KG600 | KG900 | KG1200 | KG1500 | KG1800 | |||
| Ultrasonic generator work separately control transducers | |||||||||
| power suppy | AC 110V/220V or 220/240V, 1,13AMP | ||||||||
| *Custom made:68KHz/80KHz/120KHz and size are all available | |||||||||
Features:
Original BLT type transducerSUS stainless steel housing Hard-Cr plating Treatment ( 20 + microns )
Adaptable for continuous operation
Adjustable ultrasonic power
With separate control ultrasonic electronic generator
Custom made size is available
Transducer no./transducer box: range[6pcs~40pcs per box]
Ultrasonic power: range[300W~2000W]
Ultrasonic frequency: 28KHZ/40KHz
more details:
Limplus immersible ultrasonic transducer box-embedded in your existing tank.
good quality-custom made size-chemicals resistance-moveable-convenient install
T series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.
packing and delivery:
pack by box or wooden case
delivery detail: 10-15 days
customized size
1 year warranty--- free parts can be sent if any quality problem
Ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank.
