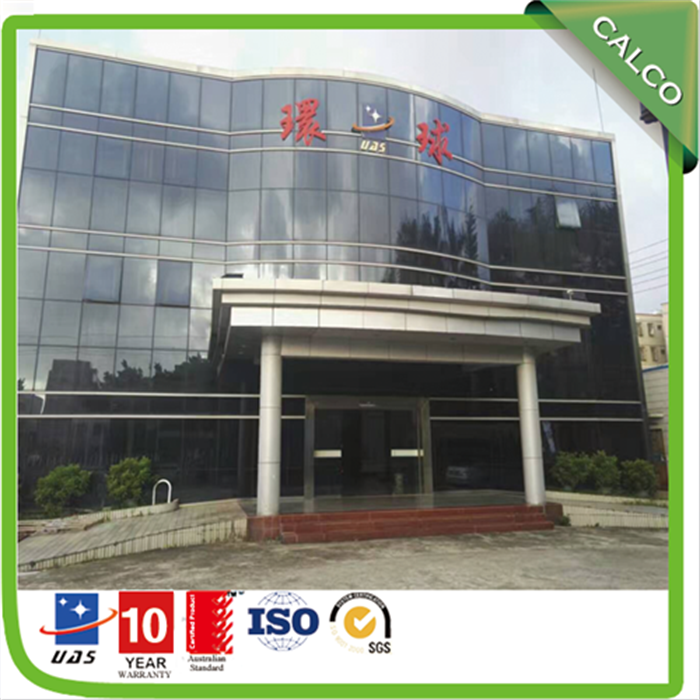

Office Glass Curtain Wall of our factory building
-
USD150≥100 Square Meter
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 100 Square Meter
- Min. Order:
- 100 Square Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 5000 Square.meters/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001:2008 |
| Transportation: | Ocean,Land |
Office Glass Curtain Wall of our factory building

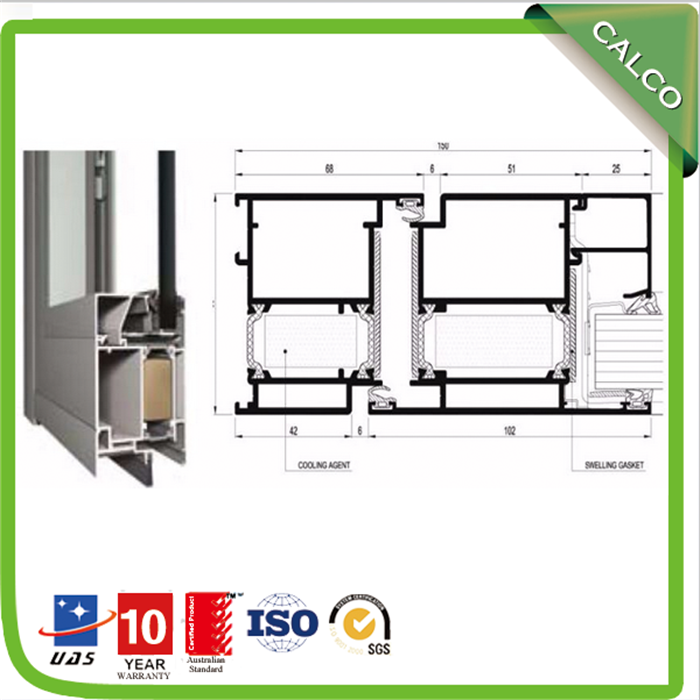

Mirror/ reflection structural glass curtain wall profile wall thickness: 2.5 mm thermal break/ standard profiles
opening style: 1 slider/ 2 sliders/3 sliders design, could make 2+0, 2+2, 2+1, 3+3
European design, single sash can load 250kg, single sash size 3350mm*3350mm
whole structure design, great sound insulated, heat insulated, great air-proof and water-proof, excellent wind loading performance
When door sliding to close the frame, less than 2.0mm, it could lock by itself. Children care design
great vision and strength,it suits for luxury villas and stars hotels
|
Curtain Wall Description |
Office Glass Curtain Wall of our factory building | |||||
| Systems | 1. Frame Systems | Exposed framing glass wall | ||||
| Semi-exposed framing glass wall | ||||||
| Invisible framing glass wall | ||||||
| 2.Frameless systems | Full glass curtain wall | |||||
| Structural Glass curtain wall | ||||||
| Glass | 1.Single toughened(tempered) glass:5mm.6mm.8mm.12mm | |||||
| 2.Double Glazed glass:5+9A+5mm,5+12A+5mm,6+19A+6mm | ||||||
| 3.Laminated glass:5+0.38PVB+5mm,5+0.76PVB+5mm | ||||||
| 4.Tinted lowe glass,Obsucre glass,Reflection tint glass ,Self-cleaning glass,translucent glass | ||||||
| Performance | Wind pressure resistance | ≥5.0kpa | GB/T 7106-2008 / 9class | |||
| Air infiltration | ≤0.5m3/(h.m) | GB/T 7107-2008 / 8 class | ||||
| Water penetration | ≥0.35kN/m² | GB/T 7108-2008 / 6 class | ||||
| Sound insulation | ≥35dB | GB/T 8485-2008 / 6 class | ||||
| Heat preservation (K value) | ≤2.0W/(m.K) | GB/T 8484-2008 / 10 class | ||||
| Shading Coefficient | ≤0.2 | GB/T 2680-2008 / 7 Class | ||||
| Profile finished |
1.Mill finish;2.Anodized;3.Powder coating; 4.Electrophoresis;5.sandblast |
|||||
| Sealant | silicon sealant, Polysulfide sealant,EPDM sealant | |||||
