6W 2G7 LED Tubes With SMD Samsung Chips

6W 2g7 led tubes, with Samsung SMD5630 LED as lights source.High luminance efficiency reaches 95lm/w. High quality PCB Borad, good quality milk PC cover and with inside CE driver. 2G7 led tubes can work with magnetic ballast, not need ballast anymore. 6W led tubes can replace 13W CFL. All the led tubes will be pass strict test and 48 hours aging before delivery. The quality of Kehei's products is worthy of your trust.

6W 2G7 LED Tubes With SMD Samsung Chips

1. Quick Details of 2G7 LED Tubes:
Brand name: KEHEI                                            Model No: PL-2G7-12-6W
Item Type: 2G7 PL Tubes                                   Power: 6W
Light Source: Samsung 5630 from Korea              Base type: 2G7
Input Voltage: AC110V/220V                               Working Temperature: -40-60℃
Warranty: 2 YEARS                                            Certifications: CE, ROHS

2. Specifications of 2G7 LED Tubes:

Model No: PL-2G7-12-6W
Light Source: Samsung 5630 from Korea
Power: 6W
Base type: 2G7
Working Voltage : AC110V/220V
Lumens: WW: 540lm     CW:570lm
Color Temperature (CCT): 2800-3200K, 3800-4200K, 5750-6150K
Beam Angle: 160°
Ra: >80
Power Factory(PF): 0.8
Light Efficiency: 90-95lm/W
Gross Weight: 89G

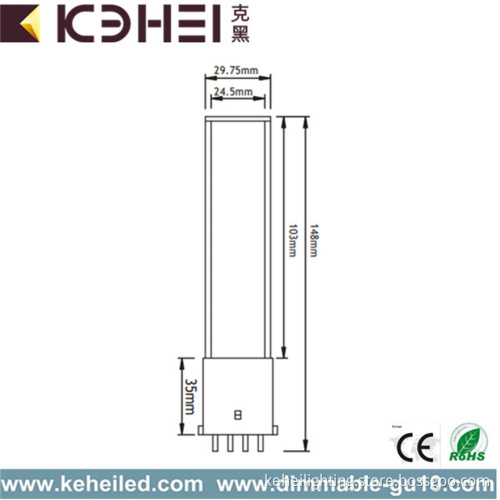

Dimension: L148*W 30mm
Shell material: Pure aluminum material 6063 heat sink
Cover material: PC cover
Advantages:
(1)Pure Aluminum heat sink.(40% than die-casting Aluminum)
(2)PC Spread cover mixes the light gently,light output can reach up to 88%.
(3)Internal Driver, not need ballast anymore,but for replacement can work with magnetic ballast
(4)To replace the 13W CFL

3. Trade terms:
1. Payment term: T/T in advance, Western Union, PayPal, L/C.
2. EXW Shenzhen
3. Production time: 3-15days
4. MOQ: 13pcs

4. Applications:

1. Landscape Accent/Spot lighting

2. Architectural Lighting
3. Display Case Accent
4. Artwork lighting
5. Mood Lighting/General Lighting
6. Amusement Park Accent
7. Commercial Lighting, house lighting
8. Hotels

5. Package & Delivery of 2G7 LED Tubes:
Package Details: 50 pcs/ctn, Meas:L260*W190*H190mm G.W:5kgs
Delivery Time:3-15days

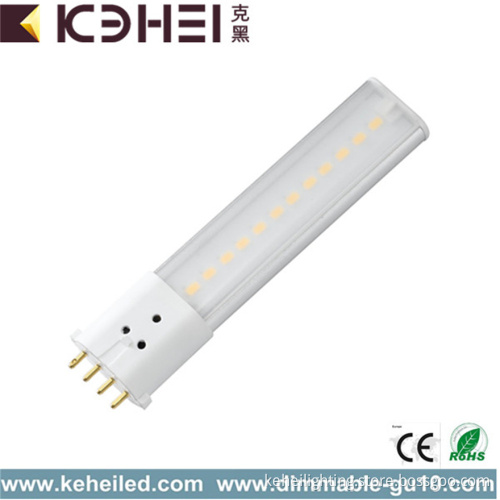

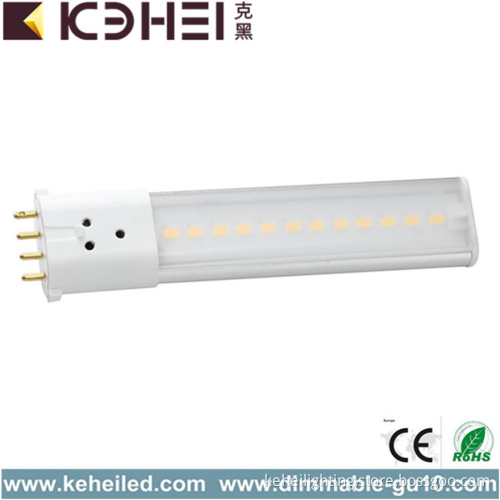

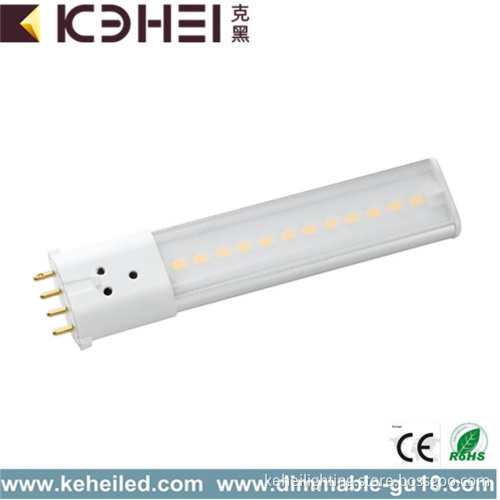

6. 2G7 LED Tubes:

7. Projects of 2G7 LED Tubes:

8. Factory & Equipments Photo:

	Development area Kehei meets your requirements   Kehei Lighting is always busy with creating and developing new products  in the area of  LED-Technology. We can ensure you that we can meet your needs. Everything is possible!  If you want,PDF of integrating sphere Data&Photometric Data,IES file are  available
	Manufacture Eye for details   We have our own CNC to produce LED heat sinkwith pure aluminum material. Soldering, make sure all product`s quality and fast delivery.   Our assembly trained and old aging testing can be qualified to  manufacture your good LED-products.
	Test Center Only the best quality   Kehei Lighting is committed to deliver quality products.  To make sure that all the Lighting products meet the requirements, All Kehei Lighting Lights are tested for duration of at least 24 hours.  Because Kehei Lighting has his own indoor test Center, testing procedures can be done strictly and fast.    In this way we can not only ensureyou the best quality, but also a fast delivery!

9.CE,RoHs approval:
