5W LED Dimmable Downlight 2.5 Inch White Black

2.5  Inch LED Downlights use SMD5630/2835 Samsung Chip, with Philips driver. The LED itself is SMD technology which is very reliable and powerful giving a life expectancy of 25,000 hours. Famous brand high quality Philips driver with high power factor. Detachable led downlights is our patent product which is very popular in Euro-market.

5W LED Dimmable Downlight 2.5 Inch

1.Quick Details of Dimmable Downlight 5W:

Brand name:  KEHEI                                    Model No: CD-09501205S
Power : 5W                                                Item Type:  2.5''/3.5'' ring LED Downlight
Cut out: 125-135mm                                    Light Source: Samsung 5630 SMD from South Korea
Input Votage:  AC110V/AC220V                   Working Temperature:  -40-60℃
Warranty:  2 YEARS                                    Certifications: CE, ROHS

2. Trade terms of Dimmable Downlight 5W:
1. Payment term:  T/T in advance, Western Union, PayPal,L/C.
2. EXW/FOB Shenzhen
3. Production time: 3-15days
4. MOQ: 20pc

3. Specifications of Dimmable Downlight 5W:
Model No: CD-0951205S
Light Source: Samsung/Sanan
Power: 5W
Working Voltage: -25-45℃
Lumens: WW: 464lm/CW: 494lm
Advantage:
1. Patent No,:ZL 2014 2 0611865.7
2. 5W and 9W modules to meet different request.
3. Efficiency 80-88lm/w , can reach ERP A++ Standard.

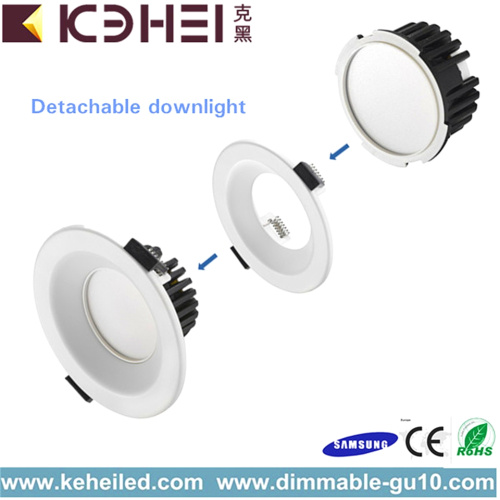

4. 4 parts can be assembled to 4 different downlights.
5. Dimmable or non-dimmable should be point.
Color Temperature (CCT): 2800-3200k/3800-4200k/5750-6300k
Beam Angle: Flood
CRI: >80
Power Factory(PF): 0.65
Light Efficiency: 80 lm/w
Net Weight: 250g

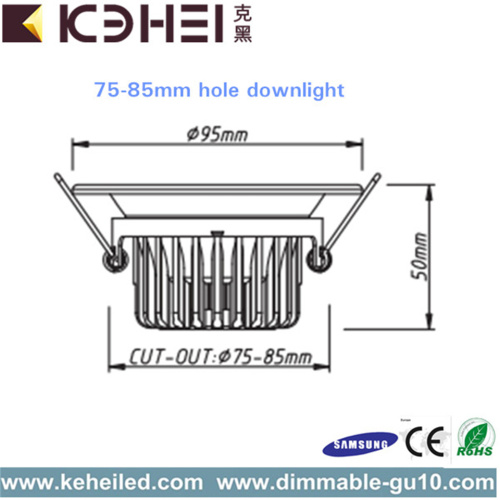

Dimension Diameter: 95*Height 50mm
Shell material: Iron&Al alloy material
Cover material: PC

4. Applications of Dimmable Downlight 5W:
1. Landscape Accent/Spot lighting
2. Architectural Lighting
3. Display Case Accent
4. Artwork lighting
5. Mood Lighting/General Lighting
6. Amusement Park Accent
7. Commercial Lighting, house lighting
8. Hotels

5. Package & Delivery:
12pcs/Ctn, Meas:415*215*470mm  G.W.11KGS

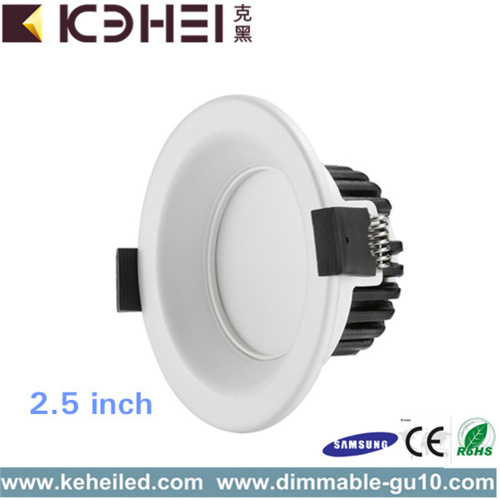

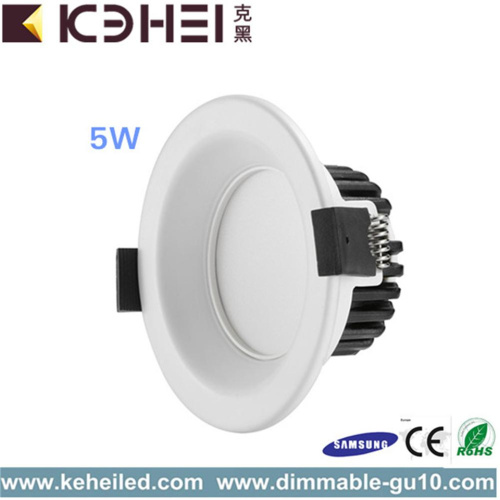

6. Dimmable Downlight 5W:

7. Project of Led Downlights:

8. LED Factory & Equipments Photo:

	Development area Kehei meets your requirements   Kehei Lighting is always busy with creating and developing new products  in the area of  LED-Technology. We can ensure you that we can meet your needs. Everything is possible!  If you want,PDF of integrating sphere Data&Photometric Data,IES file are  available
	Manufacture Eye for details   We have our own CNC to produce LED heat sinkwith pure aluminum material. Soldering, make sure all product`s quality and fast delivery.   Our assembly trained and old aging testing can be qualified to  manufacture your good LED-products.
	Test Center Only the best quality   Kehei Lighting is committed to deliver quality products.  To make sure that all the Lighting products meet the requirements, All Kehei Lighting Lights are tested for duration of at least 24 hours.  Because Kehei Lighting has his own indoor test Center, testing procedures can be done strictly and fast.    In this way we can not only ensureyou the best quality, but also a fast delivery!

9.CE,RoHs are approval:
