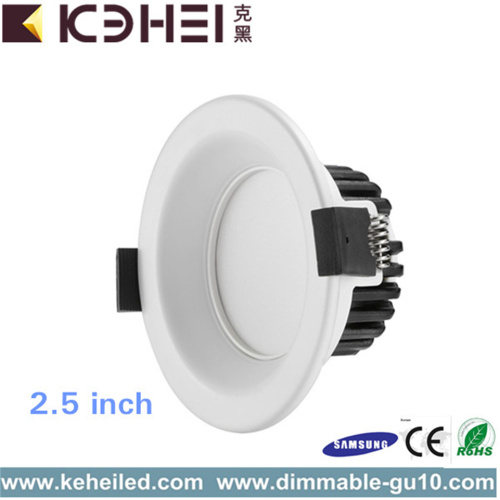

LED Ceiling Downlight Dimmable 5W 2.5 Inch

5W 2.5  Inch LED Downlights, high flux can reach 494lm. Hight CRI, >80Ra.  2.5 Inch Led Downlights with 120° wide beam angle. High brightness, high efficiency, high PF. Led dimmable downlight adopt with Samsung led chips and Go-color led diver. 2700K, 3000K, 4000K, 6000K, 6500K for option.

LED Ceiling Downlight Dimmable 5W 2.5 Inch

1.Quick Details of LED Downlights Dimmable:

Brand name:  KEHEI                                    Model No: CD-09501205S
Power : 5W                                                Item Type:  2.5''/3.5'' ring LED Downlight
Cut out: 125-135mm                                    Light Source: Samsung 5630 SMD from South Korea
Input Votage:  AC110V/AC220V                   Working Temperature:  -40-60℃
Warranty:  2 YEARS                                    Certifications: CE, ROHS

2. Trade terms:
1. Payment term:  T/T in advance, Western Union, PayPal,L/C.
2. EXW/FOB Shenzhen
3. Production time: 3-15days
4. MOQ: 20pc

3. Specifications of LED Downlights Dimmable:
Model No: CD-0951205S
Light Source: Samsung/Sanan

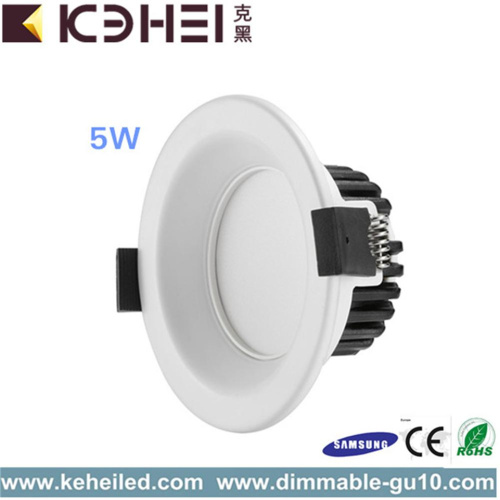

Power: 5W
Working Voltage: -25-45℃
Lumens: WW: 464lm/CW: 494lm
Advantage:
1. Patent No,:ZL 2014 2 0611865.7
2. 5W and 9W modules to meet different request.
3. Efficiency 80-88lm/w , can reach ERP A++ Standard.

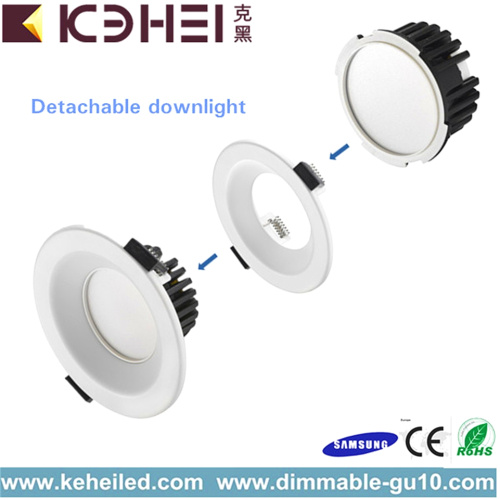

4. 4 parts can be assembled to 4 different downlights.
5. Dimmable or non-dimmable should be point.
Color Temperature (CCT): 2800-3200k/3800-4200k/5750-6300k
Beam Angle: Flood
CRI: >80
Power Factory(PF): 0.65
Light Efficiency: 80 lm/w
Net Weight: 250g

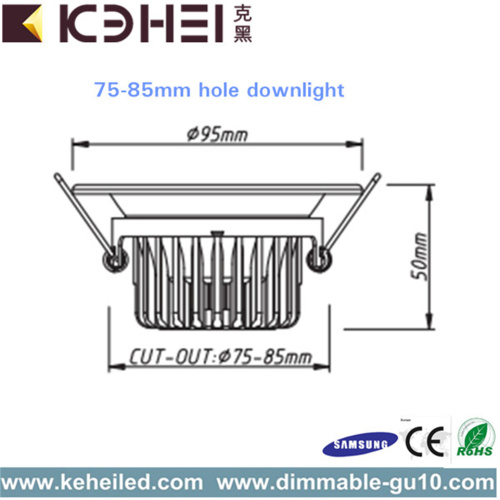

Dimension Diameter: 95*Height 50mm
Shell material: Iron&Al alloy material
Cover material: PC

4. Applications of LED Downlights Dimmable:
1. Landscape Accent/Spot lighting
2. Architectural Lighting
3. Display Case Accent
4. Artwork lighting
5. Mood Lighting/General Lighting
6. Amusement Park Accent
7. Commercial Lighting, house lighting
8. Hotels

5. Package & Delivery:
12pcs/Ctn, Meas:415*215*470mm  G.W.11KGS

6. LED Downlights Dimmable:

7. Project

8. LED Factory & Equipments Photo:

	Development area Kehei meets your requirements   Kehei Lighting is always busy with creating and developing new products  in the area of  LED-Technology. We can ensure you that we can meet your needs. Everything is possible!  If you want,PDF of integrating sphere Data&Photometric Data,IES file are  available
	Manufacture Eye for details   We have our own CNC to produce LED heat sinkwith pure aluminum material. Soldering, make sure all product`s quality and fast delivery.   Our assembly trained and old aging testing can be qualified to  manufacture your good LED-products.
	Test Center Only the best quality   Kehei Lighting is committed to deliver quality products.  To make sure that all the Lighting products meet the requirements, All Kehei Lighting Lights are tested for duration of at least 24 hours.  Because Kehei Lighting has his own indoor test Center, testing procedures can be done strictly and fast.    In this way we can not only ensureyou the best quality, but also a fast delivery!

9.CE,RoHs are approval:
