Large Diameter Commercial LED Dimmable Downlights 8 Inch

8 inch Large Diameter LED Dimmable Downlights can recessed  in 210mm hole size. 65mm height, 1050g, is slim than tha traditional lamp. Surface Commercial LED Dimmable Downlights using broadband voltage design (AC85-240V / 50-60Hz), can be used in all countries of the world. 30W Large Diameter LED Dimmable Downlights with constant current or constant voltage drive, high power efficiency, power clean, stable performance, safe and reliable.

Large Diameter Commercial LED Dimmable Downlights 8 Inch

1.Quick Details of Commercial LED Dimmable Downlights:
Brand name: KEHEI                                                  Model No:CD-23008230S
Item Type:6" or 8" led downlight                                Power :18W/30W
Light Source:Samsung from South Korea                    Input Votage:AC110V/AC220V
Working Temperature:-40-60℃                                  Warranty: 2 YEARS
Certifications:CE,ROHS,ERP

2.Specifications of Commercial LED Dimmable Downlights:
Model No: CD-23008230S
Light Source: Samsung from South Korea

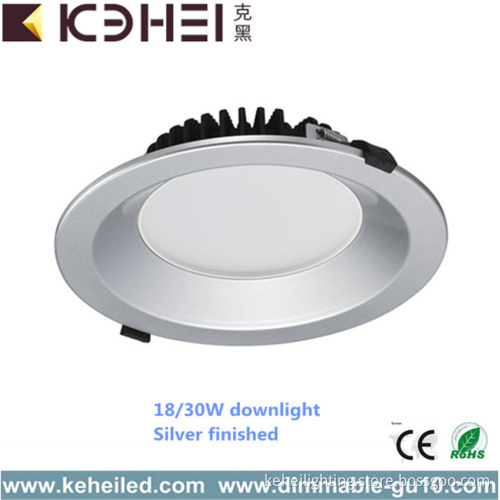

Power: 18W/30W
Working Voltage: AC110V/AC220V
Lumens: WW: 2934lm/CW:3059lm
6" led down light 's Advantage:
1. High performance-to-price ratio, 100lm/W
2. large elasticity of lamps and lanterns appearance, can change the appearance of size

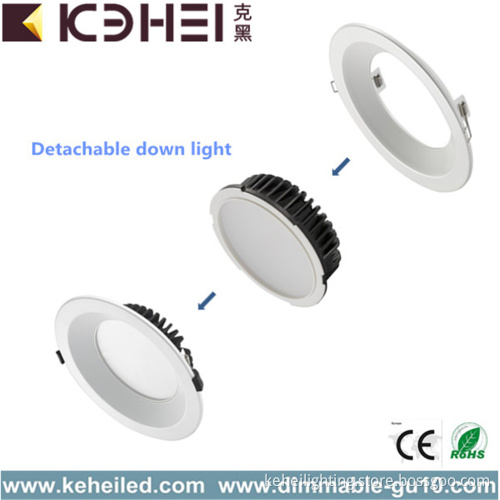

3. 4 parts can be assembled to 4 different downlights:18W or 30W,6" or 8" can be optional
4. Dimmable and non-dimmable function.
Color Temperature (CCT): 2800-3200K,3800-4200K,5750-6150K
Beam Angle: 140°
CRI: >80
Power Factory(PF): >0.95
Light Efficiency: 100lm/W
Gross Weight: 1050g

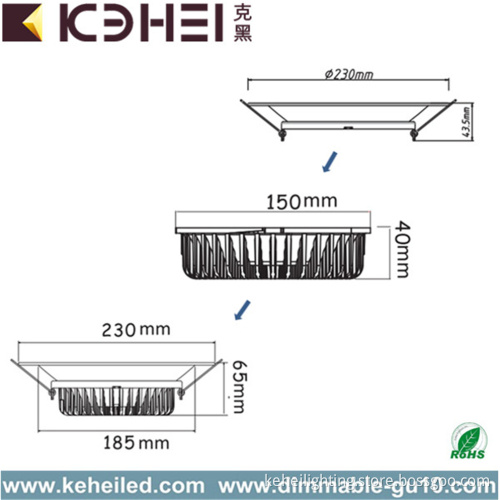

Dimension: Φ230mm, cutout 85mm, H65mm
Shell material: Pure Aluminum material
Cover material: PC cover

3.Applications of Commercial LED Dimmable Downlights:

5. Commercial LED Dimmable Downlights:

6.Project of Commercial LED Dimmable Downlights:

7.LED Factory & Equipments Photo:

	Development area Kehei meets your requirements   Kehei Lighting is always busy with creating and developing new products  in the area of  LED-Technology. We can ensure you that we can meet your needs. Everything is possible!  If you want,PDF of integrating sphere Data&Photometric Data,IES file are  available
	Manufacture Eye for details   We have our own CNC to produce LED heat sinkwith pure aluminum material. Soldering, make sure all product`s quality and fast delivery.   Our assembly trained and old aging testing can be qualified to  manufacture your good LED-products.
	Test Center Only the best quality   Kehei Lighting is committed to deliver quality products.  To make sure that all the Lighting products meet the requirements, All Kehei Lighting Lights are tested for duration of at least 24 hours.  Because Kehei Lighting has his own indoor test Center, testing procedures can be done strictly and fast.    In this way we can not only ensureyou the best quality, but also a fast delivery!

8.CE,RoHs are approval:
