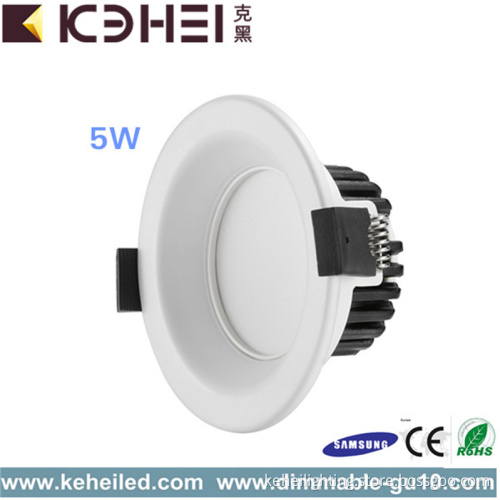

5W Housing Lamp LED Downlight Pure White

Kehei is a manufacturers that worthy of your trust. Our main products are LED downlight, led track light, ceiling lamp, panel lamp, LED tube, G23, G24, 2G7, 2G11, MR16, E26, E27, E14, GU10, Global Bulb, spotlight, Jewelry light, led strips light etc..We believe that our company`s high quality, excellent services and advanced technology coupled with our fierce commitment to customer satisfaction will create win-win relationships for discriminating partners throughout the world.

Detailed Product Description

Power: 5W                                                                Working Voltage: AC110V/AC220V
Lamp Luminous Flux(lm): 494lm CW                               Color Temperature: 2800-3200K,3800-4200K,6000K
Warranty: 2 YEARS                                                     Brand: Kehei


Quick Details:


Brand name:  KEHEI                                    Model No: CD-09501205S
Power : 5W                                               Item Type:  2.5''/3.5'' ring LED Downlight
Cut out: 125-135mm                                   Light Source: Samsung 5630 SMD from South Korea
Input Votage:  AC110V/AC220V                   Working Temperature:  -40-60℃
Warranty:  2 YEARS                                    Certifications: CE, ROHS

Trade terms:

1. Payment term:  T/T in advance, Western Union, PayPal,L/C.
2. EXW/FOB Shenzhen
3. Production time: 3-15days
4. MOQ: 20pc

Specifications of 2.5''/3.5'' ring LED Downlight 5W:

Model No: CD-09501205
Light Source: Samsung 5630 SMD from South Korea
Power: 5W
Working Voltage: AC110V/AC220V
Lumens: WW: 464lm  CW494lm
Beam Angle: 140°
Ra: >80
Power Factory(PF): >0.95
Light Efficiency: 86lm/W
Gross Weight: 250g
Dimension: Φ145mm,cutoutΦ125-135mm,H53mm
Shell material: Aluminum material
Cover material: PC cover

Applications:

1. Landscape Accent/Spot lighting
2. Architectural Lighting
3. Display Case Accent
4. Artwork lighting
5. Mood Lighting/General Lighting
6. Amusement Park Accent
7. Commercial Lighting, house lighting
8. Hotels


Note:
1. Patented product, patent No. is pending.
2. 5W and 9W modules to meet different request.
3. Efficiency 86lm/w , can reach ERP A++ Standard.

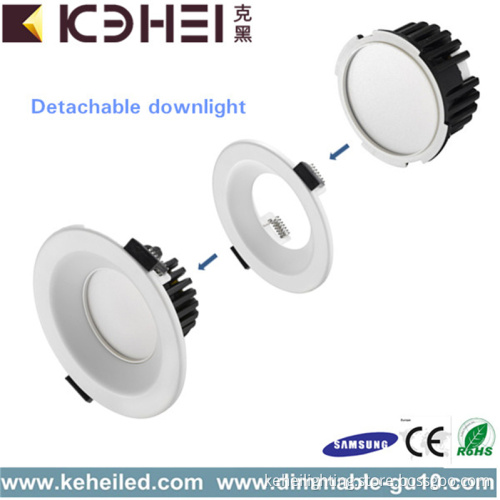

4. 4 parts can be assembled to 4 different downlights.
5. Dimmable and non-dimmable function.
6. 2.5" and 3.5" sizes can be optional.
7. CCT:3000K/4000K/6000KPackage & Delivery:
12pcs/Ctn, Meas:415*215*470mm  G.W.11KGS

Photos of 2.5''/3.5'' ring LED Downlight 9W:
