New Design 5 Inch LED Downlights 3000K 15W

New design 15w 5 inch  flush mounted LED downlights round with CE RoHS approved. Find Complete Details about New Design 15W 5 Inch LED downlights is a popular light of downlight. High performance LED chips, high light efficiency, professional heat dissipation structure design. 15w 5 inch LED downlights strings shunt protection, life time over 25,000 hours at maximum output. Outside constant current driver, universal available, easy to replace.

New Design 5 Inch LED Downlights 3000K 12W 15W

1.Quick Details of New Design 5 Inch LED Downlights:
Brand name:  KEHEI Model                                                      Model No: CD-16504815S
Power:15W/12W                                                                    Item Type:  4''/5'' ring LED Downlight
Cut out: 130-150mm Light                                                       Source: Samsung 5630 SMD from South Korea
Input Votage:  AC110V/AC220V                                               Working Temperature:  -40-60℃
Warranty:  2 YEARS                                                               Certifications: CE,ROHS

2.Specifications of New Design 5 Inch LED Downlights:
Model No: CD-16504815S
Light Source: Samsung from South Korea
Power: 12W/15W
Working Voltage: AC110V/AC220V
Lumens: WW:1540lm / CW:1555lm
6" led down light 's Advantage:
1. High performance-to-price ratio, 100lm/W
2. Large elasticity of lamps and lanterns appearance, can change the appearance of size

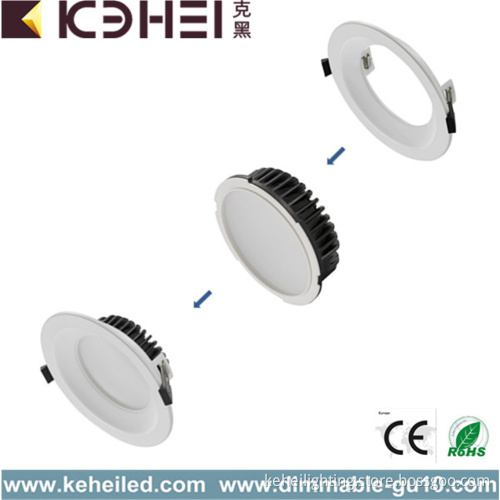

3. 4 parts can be assembled to 4 different downlights:12W or 18W,4" or 5" can be optional
4. Dimmable and non-dimmable function.
Color Temperature (CCT): 2800-3200K,3800-4200K,5750-6150K
Beam Angle: 140°
CRI: >80
Power Factory(PF): >0.95
Light Efficiency: 100lm/W
Gross Weight: 380g
Dimension: Φ165mm,cutout 130-150mm,H53mm
Shell material: Pure Aluminum material
Cover material: PC cover

3.Applications of New Design 5 Inch LED Downlights:

5. New Design 5 Inch LED Downlights

6.Project of New Design 5 Inch LED Downlights:

7.LED Factory & Equipments Photo:

	Development area Kehei meets your requirements   Kehei Lighting is always busy with creating and developing new products  in the area of  LED-Technology. We can ensure you that we can meet your needs. Everything is possible!  If you want,PDF of integrating sphere Data&Photometric Data,IES file are  available
	Manufacture Eye for details   We have our own CNC to produce LED heat sinkwith pure aluminum material. Soldering, make sure all product`s quality and fast delivery.   Our assembly trained and old aging testing can be qualified to  manufacture your good LED-products.
	Test Center Only the best quality   Kehei Lighting is committed to deliver quality products.  To make sure that all the Lighting products meet the requirements, All Kehei Lighting Lights are tested for duration of at least 24 hours.  Because Kehei Lighting has his own indoor test Center, testing procedures can be done strictly and fast.    In this way we can not only ensureyou the best quality, but also a fast delivery!

8.CE,RoHs are approval:
