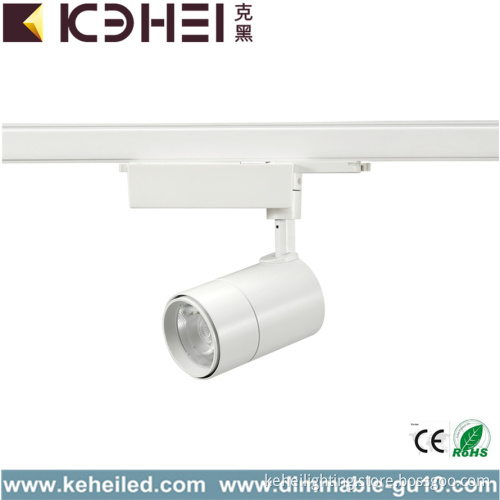

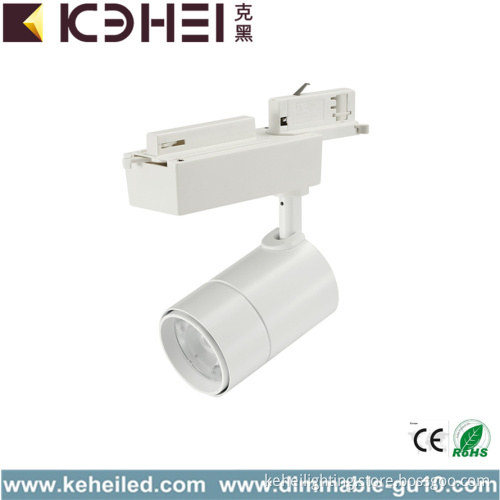

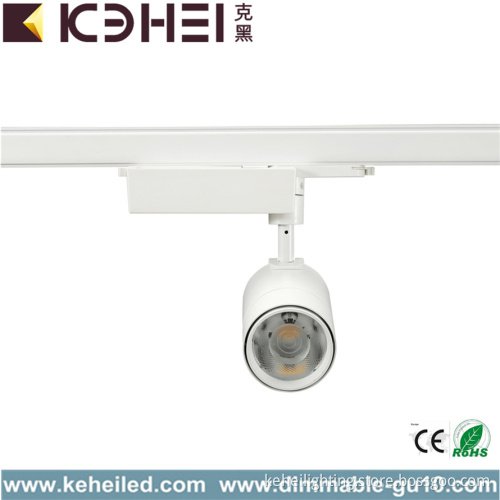

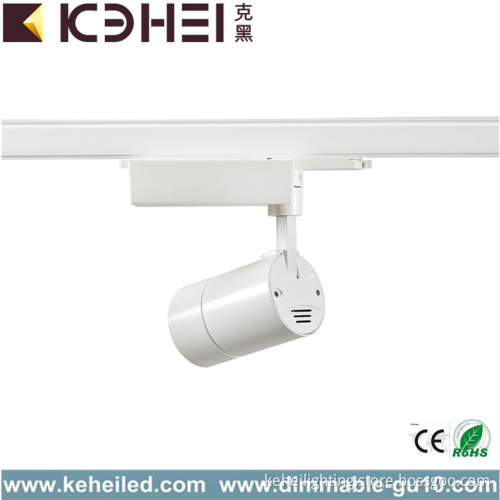

Modern Warm White LED Track Lights 20 Watt

20W LED track lights, as one of common use commercial lighting, are popular use in brand store, clothing store, museum, surpermarket, hotel and other public palce.  COB module design, integral cooling with good heat dissipation. 0-10V, Dali systerm, dial switch, dimmable and CCT changeable function are available in LED track lighhts.

Detailed Product Description

Power: 20W

Light Source: COB

Input Voltage: AC100-240V

Light Efficiency: 80lm/W

Modern Warm White LED Track Lights 20 Watt

1. Quick Details of LED Track Lights 20 Watt:

Brand name: KEHEI

Model No: TP-8020S

Light Source: COB

Input Voltage: AC100-240V

Light Efficiency: 80lm/W

Item Type: LED Track lights

Power: 20W

Light Source: COB

Input Voltage: AC100-240V

Working Temperature: -40-60℃

Warranty: 2 years

Certifications: CE, RoHS

2. Trade terms of LED Track Lights 20 Watt:

1. Payment term: T/T in advance, Western Union, PayPal, L/C.

2. EXW/FOB Shenzhen

3. Production time: 3-15days

4. MOQ: 13PCS

3. Specifications of LED Track Lights 20 Watt:

Model No: TP-8020S

Light Source: COB

Power: 20W

Working Voltage: AC100-240V

Lumens: 1550lm

Advantages:

1) Cost-effective, can reach to 80lm/W

2) Attractive appearance, strong metal feeling

3) Good thermal conductivity, low temperature, good performance.

Color Temperature (CCT): 2800-3200K, 3800-4200K, 5750-6150K

Beam Angle: 12°/24°/38°

Ra: >90

Power Factory (PF): >0.95

Light Efficiency: 80lm/W

Gross Weight: 750G

Dimension: Φ80mm, 211*190mm

Shell material: Pure Aluminum heatsink

Cover material: Acrylic cover

4. Applications:

1. Landscape Accent/Spot lighting

2. Architectural Lighting

3. Display Case Accent

4. Artwork lighting

5. Mood Lighting/General Lighting

6. Amusement Park Accent

7. Commercial Lighting, house lighting

8. Hotels

5. Package & Delivery of LED Track Lights 20 Watt:

Package Details:

Inner box: L 246mm W 182mm H 86mm

Outer box: L 508mm W 380mm H 280mm, 12pcs/CTN, 13KG

Delivery Time: 3-15 days

6. LED Track Lights 20 Watt

7. Project of LED Track Lights:

8. Factory & Equipment Photo:

	Development area Kehei meets your requirements   Kehei Lighting is always busy with creating and developing new products  in the area of  LED-Technology. We can ensure you that we can meet your needs. Everything is possible!  If you want,PDF of integrating sphere Data&Photometric Data,IES file are  available
	Manufacture Eye for details   We have our own CNC to produce LED heat sinkwith pure aluminum material. Soldering, make sure all product`s quality and fast delivery.   Our assembly trained and old aging testing can be qualified to  manufacture your good LED-products.
	Test Center Only the best quality   Kehei Lighting is committed to deliver quality products.  To make sure that all the Lighting products meet the requirements, All Kehei Lighting Lights are tested for duration of at least 24 hours.  Because Kehei Lighting has his own indoor test Center, testing procedures can be done strictly and fast.    In this way we can not only ensureyou the best quality, but also a fast delivery!
