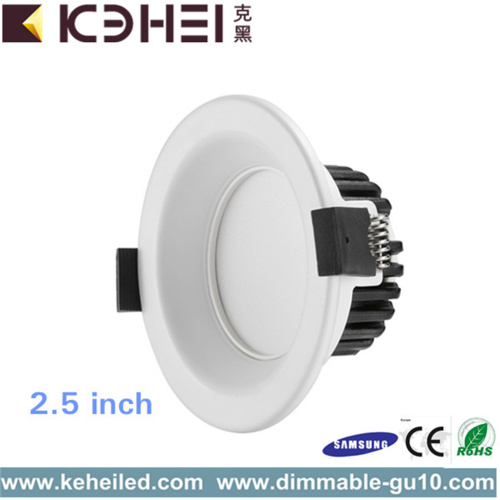

New Design Aluminium 2.5 Inch LED Downlights 5W

The shell of 2.5 inch LED downlights adopt integrated design, it optimize efficiency of heat dissipation. The 2.5 inch led downlights diffuser plate is the imported from Japan, light is soft; it`s comfortable by eyes` view. 2.5 inch LED Downlights lamp body adopt surface baking varnish disposal, shape is elegant.

New Design Aluminium 2.5 Inch Led Downlights 5W AC220V

1.Quick Details of Aluminium 2.5 Inch LED Downlights:

Brand name:  KEHEI                                    Model No: CD-09501205S
Power : 5W                                                Item Type:  2.5''/3.5'' ring LED Downlight
Cut out: 125-135mm                                    Light Source: Samsung 5630 SMD from South Korea
Input Votage:  AC110V/AC220V                   Working Temperature:  -40-60℃
Warranty:  2 YEARS                                    Certifications: CE, ROHS

2. Trade terms of Aluminium 2.5 Inch LED Downlights:
1. Payment term:  T/T in advance, Western Union, PayPal,L/C.
2. EXW/FOB Shenzhen
3. Production time: 3-15days
4. MOQ: 20pc

3. Specifications of Aluminium 2.5 Inch LED Downlights:
Model No: CD-0951205S
Light Source: Samsung/Sanan
Power: 5W
Working Voltage: -25-45℃
Lumens: WW: 464lm/CW: 494lm
Advantage:
1. Patent No,:ZL 2014 2 0611865.7
2. 5W and 9W modules to meet different request.
3. Efficiency 80-88lm/w , can reach ERP A++ Standard.
4. 4 parts can be assembled to 4 different downlights.
5. Dimmable or non-dimmable should be point.
Color Temperature (CCT): 2800-3200k/3800-4200k/5750-6300k
Beam Angle: Flood
CRI: >80
Power Factory(PF): 0.65
Light Efficiency: 80 lm/w
Net Weight: 250g
Dimension Diameter: 95*Height 50mm
Shell material: Iron&Al alloy material
Cover material: PC

4. Applications of Aluminium 2.5 Inch LED Downlights:
1. Landscape Accent/Spot lighting
2. Architectural Lighting
3. Display Case Accent
4. Artwork lighting
5. Mood Lighting/General Lighting
6. Amusement Park Accent
7. Commercial Lighting, house lighting
8. Hotels

5. Package & Delivery of Aluminium 2.5 Inch LED Downlights:
12pcs/Ctn, Meas:415*215*470mm  G.W.11KGS

6. Aluminium 2.5 Inch LED Downlights:

7. Project of Aluminium 2.5 Inch LED Downlights:

8. LED Factory & Equipments Photo:

	Development area Kehei meets your requirements   Kehei Lighting is always busy with creating and developing new products  in the area of  LED-Technology. We can ensure you that we can meet your needs. Everything is possible!  If you want,PDF of integrating sphere Data&Photometric Data,IES file are  available
	Manufacture Eye for details   We have our own CNC to produce LED heat sinkwith pure aluminum material. Soldering, make sure all product`s quality and fast delivery.   Our assembly trained and old aging testing can be qualified to  manufacture your good LED-products.
	Test Center Only the best quality   Kehei Lighting is committed to deliver quality products.  To make sure that all the Lighting products meet the requirements, All Kehei Lighting Lights are tested for duration of at least 24 hours.  Because Kehei Lighting has his own indoor test Center, testing procedures can be done strictly and fast.    In this way we can not only ensureyou the best quality, but also a fast delivery!

9.CE,RoHs are approval:
