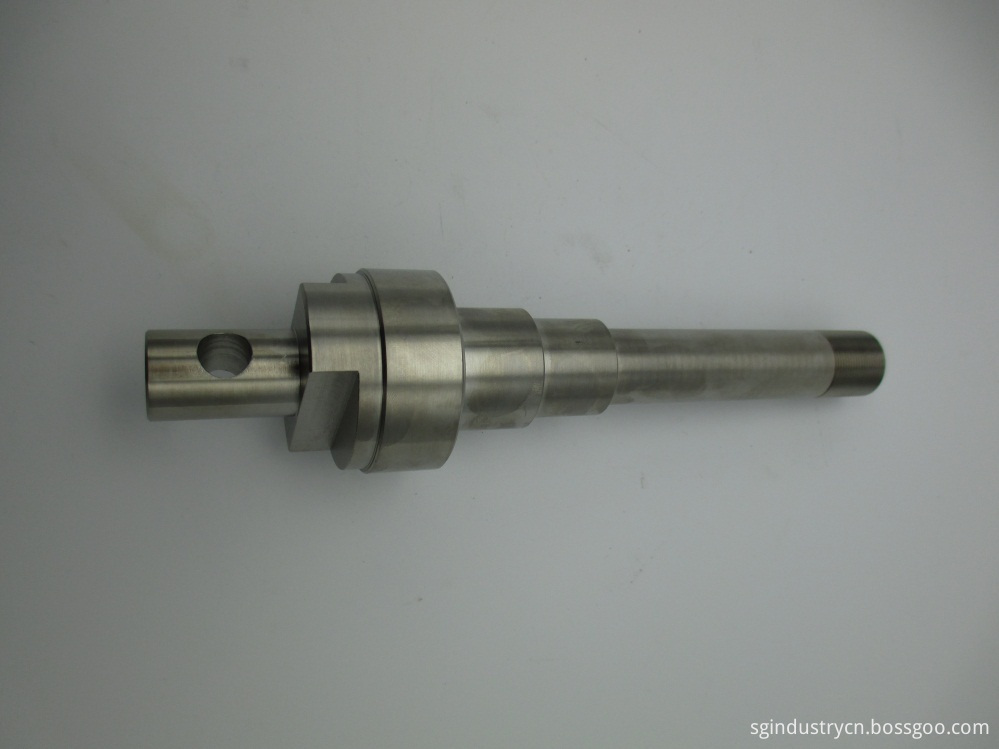

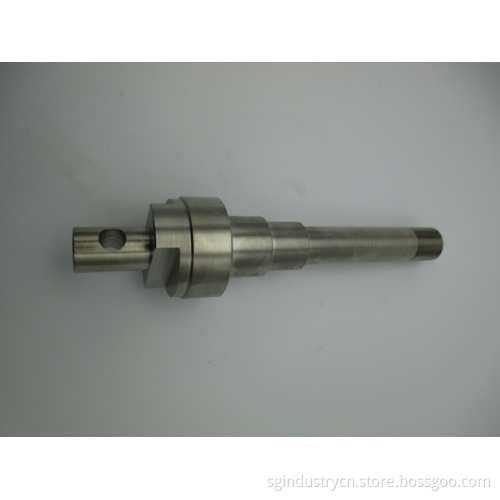

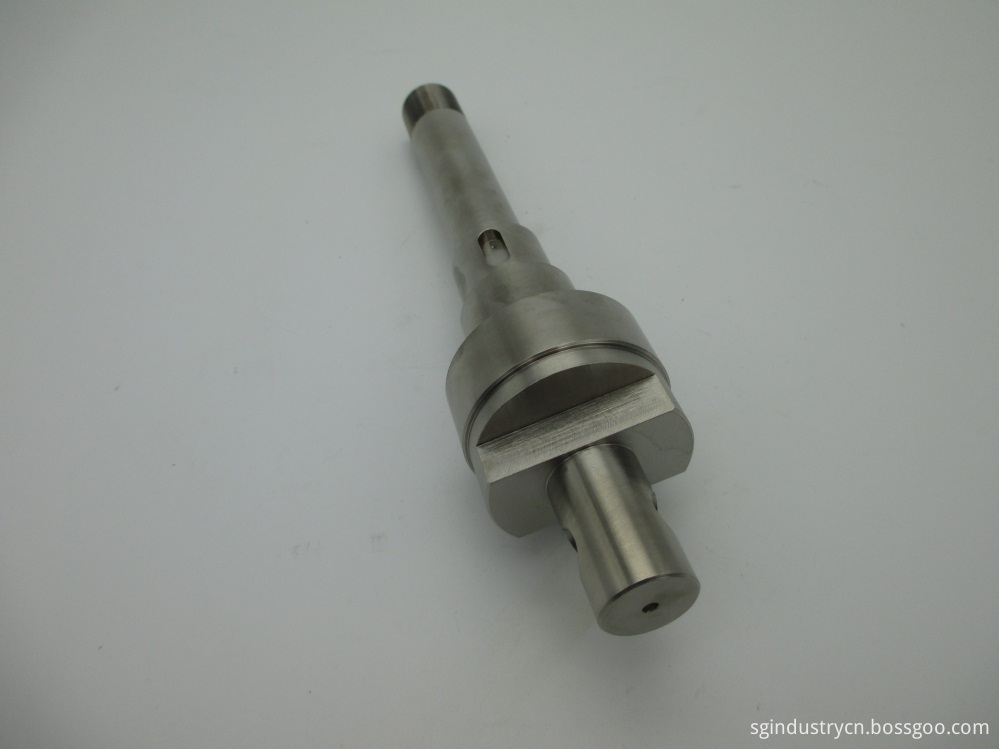

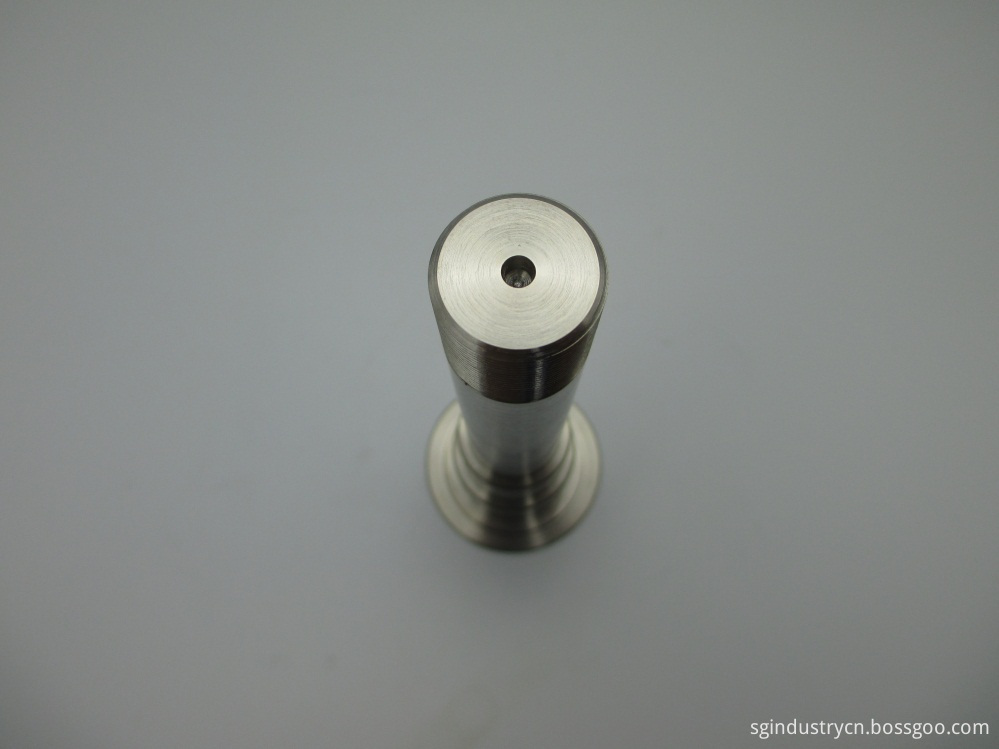

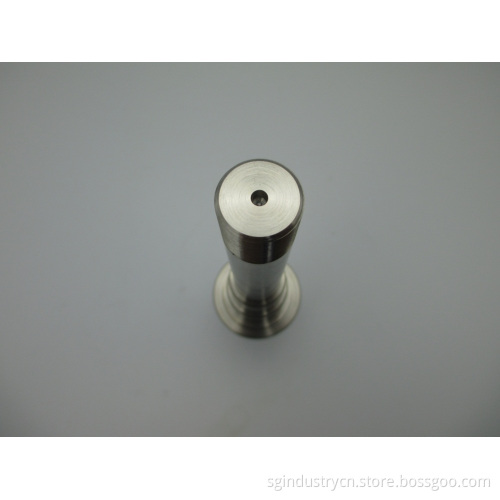

Stainless Steel 304 Machining Fixtures

We are familiar with many types of complicated geometry configurations and manufacturing techniques for custom machining fixtures. We have a very good understaning of how computer technology can be utilized with solid machining practices to establish the best possible outcomes. Our mastery with CAD modeling, machining and assembly machining fixtures services,please kindly send us for a try.

1. Materials that are available for our machining gauges, jigs and fixtures
 Fe: Fe360/ 1045/ 1049/ P20/ S136/ M2/ H13/ D2/ 440C/ 4140/ O1
Stainless Steel: 303/ 304/ 316
Al: 2017/ 5052/ 6061/ 7075
Cu: C11000/ C27400 /C34200/ C17200
Resin: Plastic/ Nylon/ POM/ Teflon/ Resin/ POM/ ABS
Else: Bakelite/ Organic glass/ Ti/ Mo / Derlin/ Peek/ Ceramics

2. Metal processing available for gauges, jigs and fixtures

3. Surface Finish available

Laser-printing, clear/ black anodizing, zinc plating, chrome plating, electroplating and nitriding are common treatments in SGI factory.

4. Tolerance for the gauges, jigs and fixtures
 From simplest to precision of +/- 0.005mm.

5. Files formats accepted when clients send us drawing

 3D: Pro/E . UG . MasterCam
 2D: AutoCad
 Accepted file format: .igs .prt .stp .x_t .dxf .dwg .pdf .jpg .tif .jpg .bmp .doc .xls.

6. SGI service team

7. Delivery

DHL, FedEx, UPS for small kilos( 2- 3 days); By sea for big kilos( 30 days).
