(TF-M6NUR)U+Disk Lanport LED Controller led contro system for display

(TF-M6NUR)U+Disk Lanport LED Controller led contro system for display

USD17.47

≥5 Piece/Pieces

Payment Type:: T/T, Paypal, Western Union, cash

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 1 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	100000PCS/Month
Supply Ability:	abundant
Payment Type:	T/T,Paypal,Western Union,cash
Incoterm:	FOB
Certificate:	CE+ROHS+FCC
Transportation:	Ocean,Land,Air

Product Description

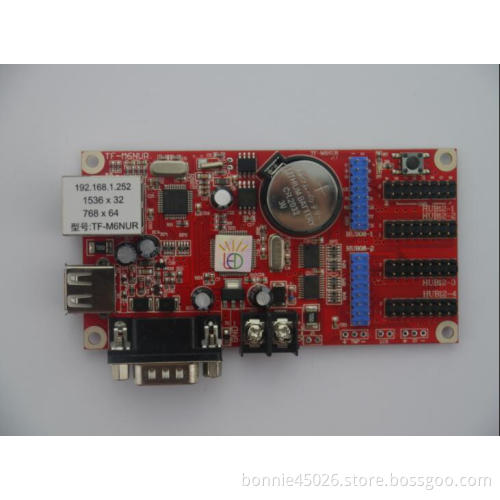

TF-M6NUR

Product Description

Model State	TF-M6NUR/TF-M5NUR Batch supply
Function introduction	Multi-area displays,network communication,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card.
Usage	indoor/outdoor
USB function:	USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
Pixel	Single colour1536x32;768x64 Double colour768x32;384x64
Ports	two 08 port; four 12 ports
Scanning mode	support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Storage	2M
Program number	Storage for maximum program number:20.Supported windows,with no more than 10 items for each.
Display	rain,fountain,scroll and much more
Border	support many Color border,Picture border
Flash format	support GIF,SWF
Image format	support BMP,JPG,GIF,WMF,ICO
Brightness	Level 16 highlighted,support manual
Screen switch	manual
Test button	On-board test button,Can switch over the
Extension function:	Temperature sensor,Temperature&humidity sensor,Brightness sensor(Diagram for connection),RF,Monochrome expand height,Through to 75 full-color interface.
Electrical parameters	+5V DC(4.5V~6V),Power consumption<0.5W
Working temperature	-30ºC~70ºC
Size	105mm*55mm

Modbus controller manual

1. IP Address Configuration
<1>Recommend using router,that will automatic search.
Also controller could connect with lan-port directly, sometimes,it need to modify the computer IP ,so that it will search successful.
<2>Controller through the network,will automatic get its own IP within about 5 seconds, afterwhile, software could find the controller directly.
If controller through the network,will automatic get its own IP after about 10 seconds,( remark: in general,when connect with computer directly, controller will not get its own IP) controller will automatic set its own IP as"192.168.1.252". If computer"s IP is "192.168.1.X", and "X" is not "252", software could find the controller by automatic search. If computer"s IP is not "192.168.1.X", please set its IP as""192.168.1.X",and "X" is not "252", then, automatic search again.

2. Senior setting and troubleshooting
<1>Please insure firewall allowed that software access to the network,Otherwise software will not find the controller.
<2>If the software cannot search & find the controller,please check the net cable is ok or not. In general,
lan port green light often light up, red light often go out, When sending and receiving data, red light flashs. If indicator light display abnormal,please check the net cable.
<3> If the controller had not connected with router,please check the computer IP is "192.168.1.X"("X" is not "252") or not.
<4>You could modificate the default IP of the controller after connecting and searching successful,
generally as follows: menu"Tools" ------>"Communication Setup" ------>"Config".
