TF-E6NUR led control system led mobile driver for advertisement

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

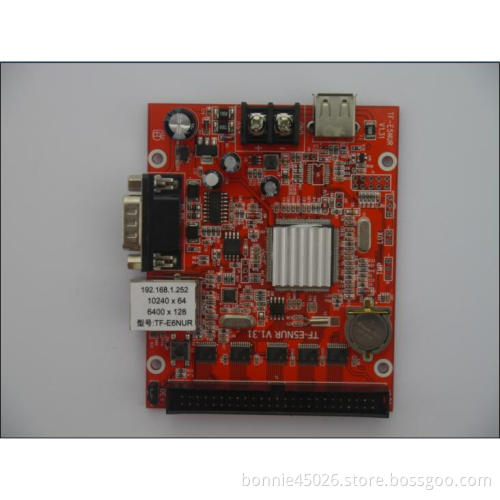

TF-E6NUR

Model State	TF-E6NUR/TF-E5NUR Batch supply
Function introduction	Multi-area displays,network communication,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card.
Usage	indoor/outdoor
USB function:	USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
Pixel	Single colour10240x64;6400x128 Double colour6400x64;3200x128
Ports	50PIN
Scanning mode	support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Storage	2M
Program number	Storage for maximum program number:20.Supported windows,with no more than 10 items for each.
Display	rain,fountain,scroll and much more
Border	support many Color border,Picture border
Flash format	support GIF,SWF
Image format	support BMP,JPG,GIF,WMF,ICO
Brightness	Level 16 highlighted,support manual
Screen switch	manual
Test button	On-board test button,Can switch over the
Extension function:	Temperature sensor,Temperature&humidity sensor,Brightness sensor(Diagram for connection),RF,Monochrome expand height,Through to 75 full-color interface.
Electrical parameters	+5V DC(4.5V~6V),Power consumption<0.5W
Working temperature	-30ºC~70ºC
Size	80mm*110mm
