Product Introduction

A30Ex, specially designed solvent recycling system for small amount of organic solvent recovery. Tilting-type and air-cooled condensing system, safe structure are manufactured by Chinese explosion-proof standard (CNEX: Ex d IIB T2 Gb, certificate No. CNEx16.2110X) and European standard (ATEX). After distilling and cooling for proximate 2.5 hours, clean organic solvents will be ready for reuse.
It is suitable for small amount of organic solvent to recycle.

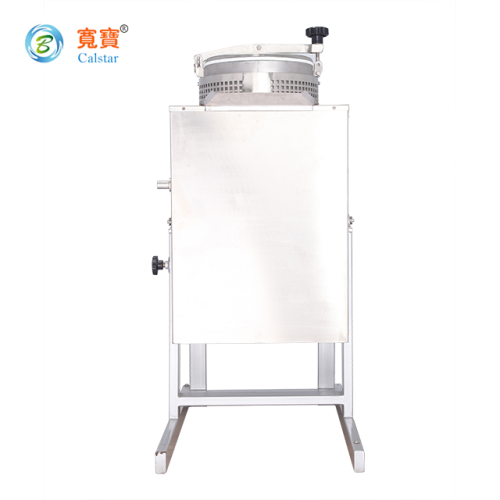

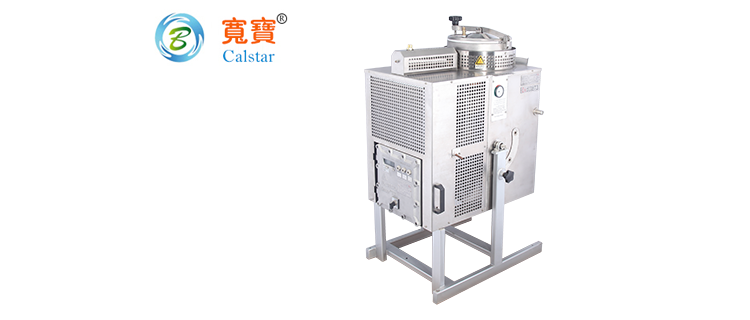

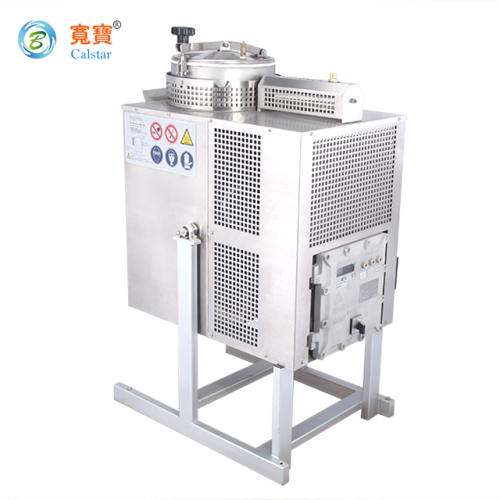

Product Photos

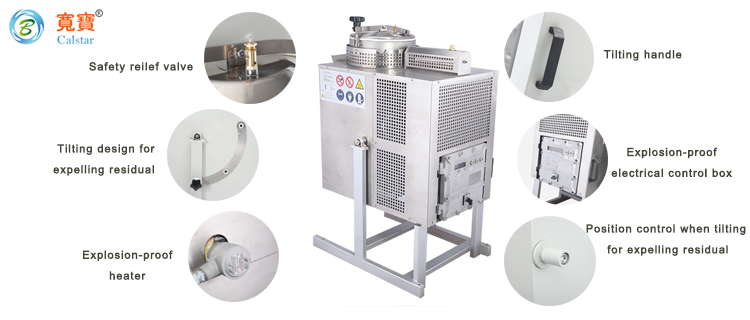

Detailed images

Technical data

NOTE: Values listed above are under ideal conditions in laboratory, just for your reference. The realistic data will be a little deviation due to the difference of waste content, boiling point of solvent, room temperature, viscosity etc.

Recoverable solvents list
1. Aromatics categories: toluene, xylene, mesitylene, etc.
2. Aliphatic hydrocarbons: pentane, hexane, octane, etc.
3. Alicyclic hydrocarbons : cyclohexane, cyclohexanone, toluene and cyclohexanone, etc.
4. Halogenated hydrocarbons: chlorobenzene, dichlorobenzene, methylene chloride, trichlorethylene, etc.
5. Alcohols: methanol, ethanol, isopropyl alcohol, etc.
6. Ether: ether, propylene oxide, etc.
7. Esters: methyl acetate, ethyl acetate, butyl acetate, etc.
8. Ketone: acetone, methyl ethyl ketone, methyl isobutyl ketone, etc.
9. As well as other organic solvents that are not listed.

Unrecoverable solvents list

1. Nitrocellulose (nitro), and oxidant solvents and other hazardous materials.
2. Strong acid or strong alkaline solvents.
3. Highly toxic solvents.
4. Pairs of stainless steel or brass with a strong corrosive solvent.

Main Features

● Explosion-proof design: in compliance with Chinese Explosion-proof standards (CNEX) and European standards (ATEX),
● Standardized production, stable and durable quality guaranteed.
● Tilting-type: gradually tilting and pouring out waste residue which is easily removed.
● SUS304 stainless steel tank is used to prevent chemical corrosion. Two layers design, reinforcement barrelhead design, precise temperature control, explosion-proof, anti-leakage are made for safer operation.
● Heating Method: heat medium (heat transfer oils) indirect heating.
● Digital heating temperature controller: advanced numerical display, accurate and convenient heating temperature control.
● Multiple operational safety protection functions: power off or power on by timing or temperature pre-set, excessive temperature protection features; high-voltage protection function; power failure protection function.
● Short reclaiming process, simple operation.
● Less maintenance.

Packing and Delivery

Packing

1. Seaworthy standard wooden box.
Delivery
1. 15 days after payment if equipment in stock, or 30 days after payment if equipment customized.

Certifications

Our clients

Our Service

1. Quick response within 3 hours.
2. Products with international certificate.
3. Products 100% QC checked before shipping.
4. Three-year warranty for completed machine except Heat transfer oil, Gaskets and switches.
5. Customization and Buyer label offered are available.
6. providing professional solution of solvent recovery.
7. providing solvent sample analysis and optimizing solvent formula for free.
8. Wholesale and retail.
9. Pre-sales inquiry and consulting.
10. On site installation and operation training after sales while Volume of machine is 200L equal or above. On the contrary, video of installation and operation training provided.
