4mm Thickness Quality Fiberglass Insulation Materials Sheet
- Min. Order:
- 10 Kilogram
- Min. Order:
- 10 Kilogram
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen , China |
|---|---|
| Productivity: | 1000Tons per month |
| Supply Ability: | 1000Tons per month |
| Payment Type: | T/T,D/P,Paypal,L/C |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001,ROSH |
| HS Code: | 3920940000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

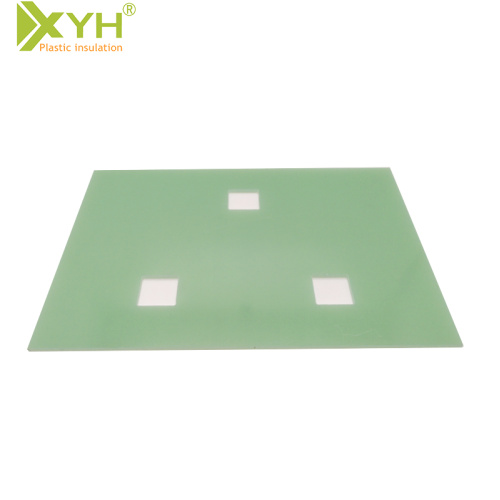

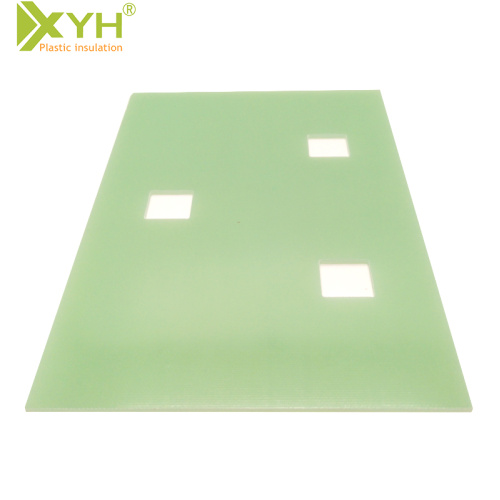

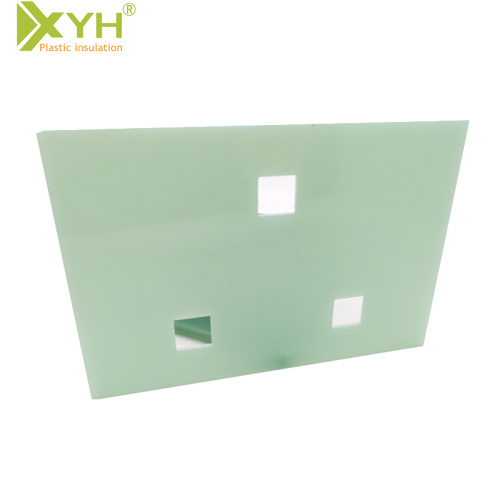

Fr4 Epoxy Glass Sheet
Epoxy Glass Cloth FR4 sheet ,Grade FR4 sheet exhibits extremely high mechanical strength(flexural,impact,and bonding) at room temperature and has good dielectric loss and electric strength properties under both dry and humid conditions.
|
Item |
FR4 Fiber Glass Sheet |
Density |
2.2g/cm3 |
|
Thickness |
0.2-100mm |
Size |
1020*2040mm 1220*2440mm |
|
Place of Origin |
Shenzhen |
Brand |
XYH |
|
Model No. |
XYH-G10/FR4 12.13 |
Packing |
wooden pallet as customers' required. |
|
Water Absorption |
<0.01% |
Contraction Percentage |
<0.4% |
|
Tensile Strength |
(51~80)MPa, 78.4MPA |
Rated Voltage |
25KV/MM |
|
Formation Methods |
High Temperature High Pressure |
Services |
OEM,ODM |
Fr4 Epoxy Fiberglass are electrical alkali-free glass woven fabric base impregnated epoxy resin binder by processing under pressure and heat, which have extremely high mechanical strength, good dielectric properties, good electric strength properties and fine heat and humidity resistance. In addition, it has anti-fire property.
Epoxies are thermosetting polymer resins where the resin molecule contains one or more epoxide groups. The chemistry can be adjusted to perfect the molecular weight or viscosity as required by the end use. Their are two primary types of epoxies, glycidyl epoxy and non-glycidyl. Glycidyl epoxy resins can be further defined as either glycidyl-amine, glycidyl-ester, or glycidyl ether. Non-gylcidyl epoxy resins are either aliphatic or cyloaliphatic resins.
Processing Parts
Factory Introduce:
Shenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, is a manufacturer and trader, specialized in the research, development and production of Engineering Plastic and Insulation Plastic, such as phenolic laminated, epoxy fiberglass, nylon PA6, POM, PE, PVC. PU, PTFE and ABS.
We also have processing equipment, like CNC carving machine and laser engraving machine to engraving, cutting, bending and drilling.
