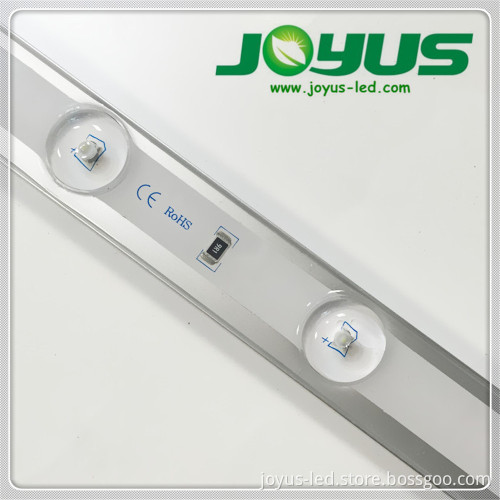

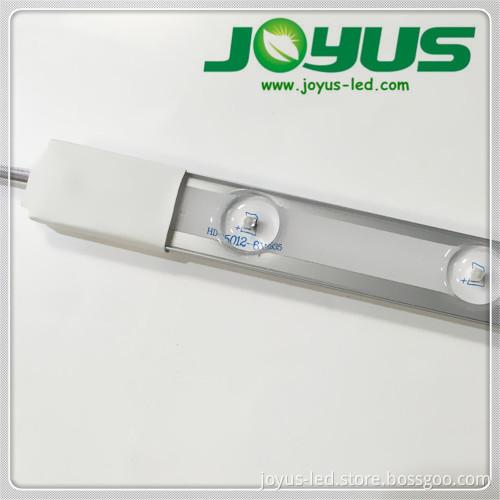

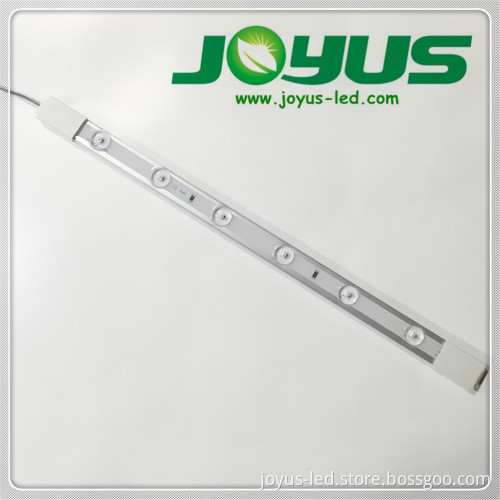

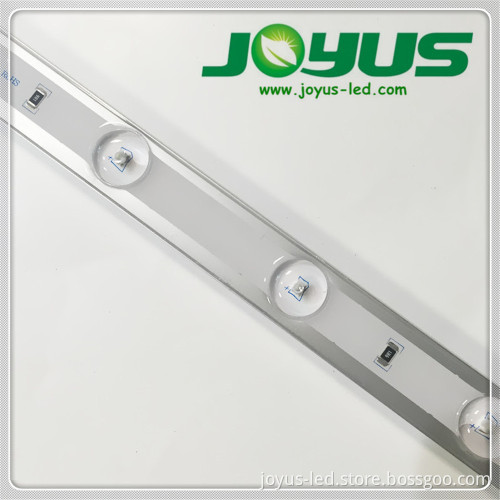

24v aluminum profile high power 2835 lens led rigid bar lights

24 volt 6leds IP65 smd2538 rigid led bar with lens

Parameter

1. Model Number: JY-HSF6V24-L400W20T9

2. SMD Type: 2835 (5630/3014/3528/7020/5050 SMD LED for your choice)

3. LED Quantity: 6 leds per piece

4. Working Voltage: DC24V

5. Power: 8.5 W/PC

6. Lumen: 600-660 lm/pc

7. LED rigid strip width: 20 mm (including aluminum profile)

8. LED rigid strip length: 400mm ( including aluminum profile)

9. CCT: 2700-6500K

10. Lighting Color: warm white, natural white, pure white, cold white

11. CRI: > 80 (CRI>70/CRI>75/CRI>90)

12. Waterproof Rank: IP65

13. PCB Material: 1.6 mm thick aluminum (good quality aluminum pcb)

14. LED Strip main usage: light box, super thin light box and advertising light box.

15. Lens beam angle: 160 degree (single beam angle, not double)

16. Accessory: cable, cable connector, white heat shrink tubing on both ends,etc

17. Working Temperature: -40 ~ +50 degree

18. Lifespan: > 50, 000 hours

19. Warranty: 3 years

20. Certificate: CE / RoHS / FCC / ISO9001 / ISO2001

21. MOQ: 5 pieces

22. Lead Time: 1 day

23. Chip Brand:  Epistar, San'an

24. Blue thermal adhesive back tape is available.

25.Other Usage: cabinet, display, showcase, bus stop, home decoration,etc.

26. Net weight: 0.2kg/pc.

27. Accessory on the ends: wires, connector depending on your exact need

28. Using 1w high power SMD2835 LED

29. Other lens beam angle for your choice

30. SMD3535 high power led rigid strip with lens also are designed by us earliest.

31. The power depends on the resistor.

32. Using 100-110lm per SMD2835 LED

33. Our all designs for led light box are popular all over the world, like curtain/lattice/window led rigid strip, high power led strip with lens, narrow led strip 4mm 5mm 6mm 8mm specially for led light box
