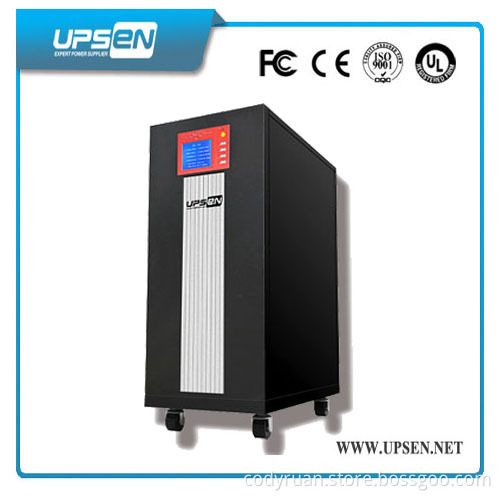

Online UPS High Efficiency Strar Series 10K-200Kva
- Payment Type:
- L/C, T/T, Money Gram, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 1000PCS/Month |
| Supply Ability: | 1000PCS/Month |
| Payment Type: | L/C,T/T,Money Gram,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE & ISO Certificate |
| Transportation: | Ocean,Land,Air |
Low Frequency Online UPS High Efficiency Strar Series
HE33 10K-200K(3Ph in/3Ph out)
Application
Large-medium computer data center, industrial process and other mission-critical equipment
Key Features
● DSP control
● Double CPU control
● Modularize
● Battery can be sharing
● Up to 8 units in parallel
● Compatible with generator
● Manual maintenance bypass
● Wide input voltage range
● High output power factor
● Strong environmental adaptability
● Advanced battery management
● N+X parallel redundancy
● Strong shock resistance ability
● EPO function
● Full protection against over-discharge, overcharge, over load
Technical Specification
|
High Efficiency Strar Series HE33 10K-200K |
||||||||||||
|
Model |
HE33 Series UPS |
|||||||||||
|
Capacity (VA) |
10K |
15K |
20K |
30K |
40K |
60K |
80K |
100K |
120K |
160K |
200K |
|
|
Noninal output capacity |
8KW |
12KW |
16KW |
24KW |
32KW |
48KW |
64KW |
80KW |
96KW |
128KW |
160KW |
|
|
Operate type |
Double conversion online type |
|||||||||||
|
Input |
Nominal voltage |
220V/380, 230/400, 240/415V |
||||||||||
|
Voltage Tolerance |
380/400/415V±25% |
|||||||||||
|
Frequency |
50Hz/60Hz±5% |
|||||||||||
|
Permitted Frequency Tolerance |
±2% (selectable from ±1% to 5% from the front panel) |
|||||||||||
|
Soft start |
0-100% in 30" (selectable) |
|||||||||||
|
Input power factor |
0.95(with input filter) |
|||||||||||
|
Standard features |
Back Feed protection separable bypass line |
|||||||||||
|
|
Phase |
Three phase +N+G |
||||||||||
|
Output |
Voltage |
220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
||||||||||
|
Frequency |
50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
|||||||||||
|
Static stability |
±5% in 19ms |
|||||||||||
|
Distortion |
Linear load <3%, non linear load<5% |
|||||||||||
|
Power factor |
0.8 |
|||||||||||
|
Output wave |
Pure sine wave |
|||||||||||
|
Crest factor |
3:01 |
|||||||||||
|
Battery voltage |
Standard battery voltage |
384V |
432V |
480V |
||||||||
|
Floating charge |
432V |
486V |
540 |
|||||||||
|
Terminal voltage |
336V |
378V |
420V |
|||||||||
|
Charge current |
1A-50A (Can calculate and set according to battery configuration software) |
|||||||||||
|
Maximum Discharge Current |
28 |
42 |
56 |
85 |
113 |
169 |
225 |
282 |
338 |
381 |
507 |
|
|
Main Function |
Active voltage change |
0-100%±5% |
||||||||||
|
Instant recover time |
<10ms |
|||||||||||
|
Imbalance voltage |
<±5%,<±1%( Balance load voltage) |
|||||||||||
|
Overload capacity |
125%→10min,150%→1min |
|||||||||||
|
Static switch |
Automatic |
|||||||||||
|
Protection |
UPS over current, short circuit, battery low voltage, over heat |
|||||||||||
|
Cold method |
Compel aeration ( temperature control mode) |
|||||||||||
|
Noise |
60-65dB |
|||||||||||
|
Display |
LED.LCD display |
|||||||||||
|
Remote signalling |
Voltage-free contacts |
|||||||||||
|
Remote commands |
EPO and bypass |
|||||||||||
|
Communication Port (Optional) |
double RS232 + remote contacts + 2 communication interface slots |
|||||||||||
|
Alarm |
Alarm with buzzer and indicators |
|||||||||||
|
Environment |
Temperature: 0-40C Humidity: 0-90% |
|||||||||||
|
*Specification are subject to change without prior notice |
||||||||||||
