Online UPS Queen Star Series 6K-20Kva

Get Latest Price

Payment Type:: L/C, T/T, D/P, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT, CIP

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	1000PCS/Month
Payment Type:	L/C,T/T,D/P,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT,CIP
Certificate:	CE & ISO Certificate
Transportation:	Ocean,Land,Air

Product Description

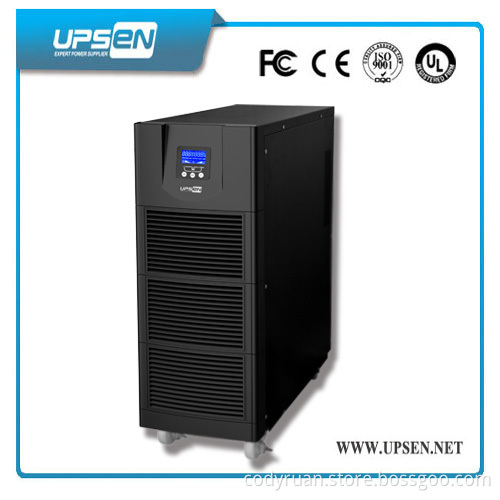

High Frequency Online UPS Queen Star Series Q6K-20Kva (1ph in/1ph out, 3ph in/1ph out)

Product Description

Introduction:Queen Star Series Online UPS 6K-20Kva, is of fully of advanced DSP Online HF UPS.

It has high adaptability, performance, compact design and less batteries to reduce your space and installation cost.

Perfect Application

Network, data centre, servers and workstations, control system, communication system, Telecom system, power station,

security system, hospital, school, home and office etc.

Main Features

●True online double conversion technology, Pure Sine Wave Output
●0.8 Output Power Factor, Digital LCD Screen, Zero transfer time

●DSP Technology, compact design
●Active input power factor correction (PFC)
●Protection against all types of power problems
●Wide range of input voltage and frequency
●Active Load Management, cold start function
●Sufficient Expansion Slots for USB,AS400,CMC monitoring,SNMP,RS485 and EMD environmen monitoring
●Equipped with maintenance bypass switch
●Generator Supportable
●Sealed lead acid, maintenance free battery

Technical Specification

Model		Q6K	Q6KL	Q10K	Q10KL	31Q10KL	31Q15KL	31Q20KL
Capacity		6KVA/4800W		10KVA/8000W			15KVA/12KW	20KVA/16KW
Input	Nominal Voltage	220/230/240Vac				380/400/415Vac
	Voltage Range	176~276Vac (1P2W+G)				304~478Vac (3P4W+G)
	Current	31A (max)		50A (max)		50A (max)	75A (max)	100A (max)
	Frequency	46~54Hz/56~64Hz
	Power Factor	≥0.99
Output	Voltage	220/230/240± 2%Vac (1P2W+G)
	Frequency	50/60Hz(adjustable) 50/60Hz± 5% (Line mode) 50/60Hz ± 0.05Hz ( Battery mode)


	Current	27.3A		45A			68A	91A
	Power Factor	0.8lag
	Waveform	Pure Sine Wave
	Waveform Distortion	Line load ＜2%				Line load ＜3%
Back-up Time	Full Load	≥7′	Depends on external batteries bank's Capacity	≥5′	Depends on external batteries bank's Capacity
	Half Load	≥20′		≥13′
Battery Nominal Voltage		192/240Vdc
Transfer Time		0ms
Overload Capacity		＞105% 1min, ＞120% 30s transfer to bypass, shut down in 1min
Communication		SNMP,RS-232,USB+Intelligent Slot
Operating Environment	Temperature	0C~40℃
	Humidity	15%~90%
Dimension	Width (mm)	260	260	260	260	260
	Depth (mm)	560	533	560	533	560
	Height (mm)	717	501	717	501	717
Net Weight(Kg)		68	18	70	20	28	30	30
*Specification are subject to change without prior notice
