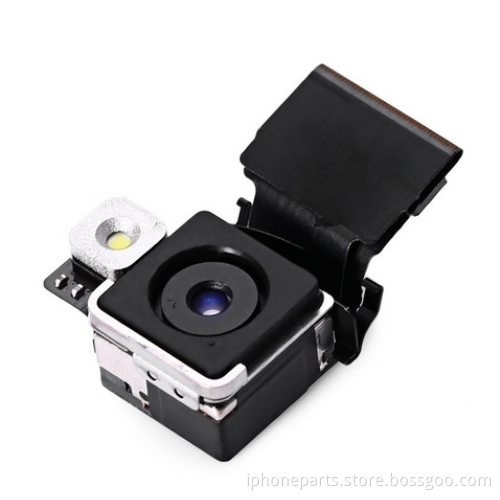

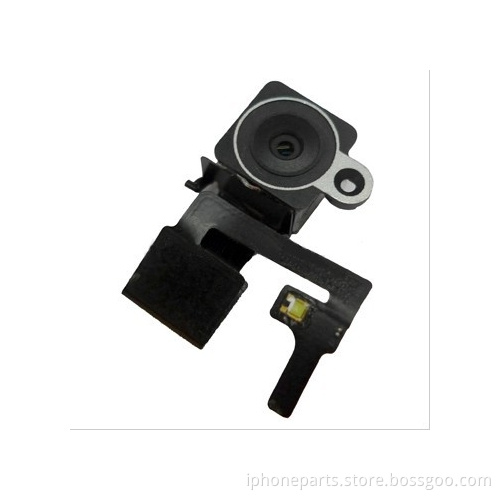

Back Rear Camera Parts for iPhone 4S

This is 100% original Back Rear Camera replacement parts for iPhone 4S. It is new and Genuine with best quality. When some parts on iPhone 4S Back camera is damaged or crashed, you can use it for replacment. However, it is not so easy for a normal people to replace parts for iPhone 4S, it is better to go some repair shop to ask help.

Back Rear Camera Replacement parts for iPhone 4S Information

Weight: 10g
Warranty: 3 Months

Standard Parts for iPhone 4S, no distortion

100% tested Back camera parts, work well.

Compatible: for iPhone 4S

Package Include: 1x Rear Camera Modul

Back Rear Camera Parts for iPhone 4S Function

This parts for iPhone 4S is used to replace damaged Back camera

How to replace Back Rear Camera for iPhone 4S

Step 1:

Your iPhone 4 rear cover may have either two #000 Phillips screws or Apple's 5-Point "Pentalobe" screws. Check which screws you have, and ensure you also have the correct screwdriver in order to remove them.

Remove the two 3.6 mm Pentalobe or Phillips #000 screws next to the dock connector.

Push the rear panel toward the top edge of the iPhone.

Step 3:

Pinch the rear panel with your fingers and lift it away from the iPhone. Alternatively, use a Small Suction cup .

Step 4:

Remove the single 2.5 mm Phillips screw securing the battery connector to the logic board.

Step 5:

Use a plastic opening tool to gently pry the battery connector up from its socket on the logic board.

Remove the metal clip covering the antenna connector.

Step 6:

Use the clear plastic pull tab to gently lift the battery out of the iPhone.

Remove the contact clip from the iPhone.

Step 7:

Remove the following five screws securing the connector cover to the iPhone: 2.3mm, 1.6mm, 1.4mm, 4.8mm.

Remark: in order to remember their proper positions, it might be helpful to draw 5 circles on a sheet of paper, placing each screw in the corresponding circle.

• Use an iPod opening tool to slightly lift the top edge of the connector cover away from the logic board.

• Use the tip of a spudger to pull the connector cover retaining clips away from the inner frame.

• Remove the connector cover from the iPhone.

• Before reassembly, be sure to clean all metal-to-metal contact points on the connector cover with a de-greaser such as windex. The oils on your fingers have the potential to cause wireless interference issues.

Use an iPod opening tool to carefully lift the rear camera connector up off its socket on the logic board.

Step 10:

• Remove the rear camera from the iPhone avoiding to move some of the connectors to the right.

• After reinserting the new camera, verify these connectors if the IPhone does not power on.

• Remark: The battery (not shown on the photos) should be disconnected but doesn't need to be removed entirely.
