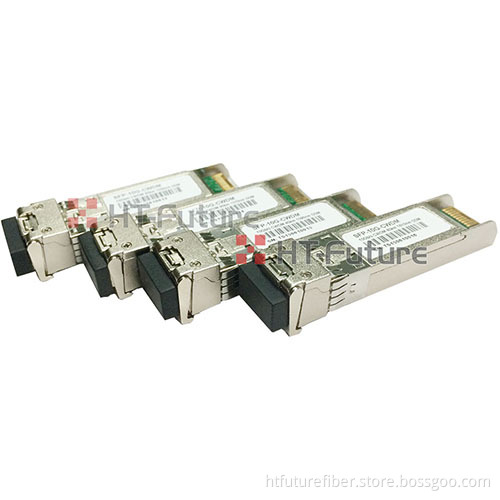

10Gb/s CWDM SFP+ 80km Transceiver

HTFuture HTFPPC-XX96-80BD transceivers support the 2-wire serial communication protocol as defined in the SFP+MSA.
The standard SFP serial ID provides access to identification information that describes the transceiver`s capabilities, standard interfaces, manufacturer, and other information.

Product Features
1, Up to 11.1Gbps Data Links
2, Up to 80km transmission on SMF
3, Power dissipation < 1.5W
4, Uncooled CWDM DFB Laser and PIN receiver
5, Metal enclosure, for lower EMI
6, 2-wire interface with integrated Digital Diagnostic monitoring
7, Hot-pluggable SFP+ footprint
8, Specifications compliant with SFF 8472
9, Compliant with SFP+ MSA with LC connector
10, Single 3.3V power supply
11, Case operating temperature range:0°C to 70°C

Applications
1, 10GBASE-LR/LW 10G Ethernet

Standard

1, Compliant to 802.3ae 10GBASE-LR/LW
2, Compliant to SFF-8431
3, RoHS Compliant.

HTFPPC-XX96-80B:Uncooled CWDM DFB Laser, 10Gbps, 80km, 0oC ~ +70oC, DDM
