Sanitary Pressure Transmitters

Instruction:

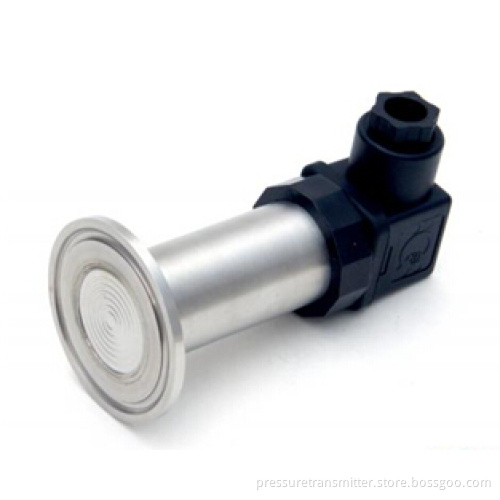

HPT-9 sanitary pressure transmitter uses piezoresistive silicon chip as sensing element, which is made with flush membrane structure .It has clamping type, M21×1.5 thread type, 2"clamp and flange type for options. Current and voltage output signal are optional.The product have good ability on preventing fouling, crystallization and jamming of thick liquid and widely used on pressure measure in , papermaking, paint, medical pharmacy, food & beverage.etc..

Features:

Ø Suitable for viscous liquid
Ø Fast installation
Ø Easy to clean
Ø Suitable for sanitary environment

Applications:

Ø Food and beverage
Ø Dairy
Ø Pharmaceutical
Ø Papermaking
Ø Brewing industry

Pressure range -0.1~60MPa
Pressure type Gauge pressure,Absolute pressure
Output signal 4~20mA , 0~10V or Optional
Accuracy(%FS) 0.1 0.25 0.5
Nonlinearity(%FS) <0.2
Hysteresis(%FS) 0.1 <0.2
Repeatability(%FS) <0.2
Zero drift(%FS/) <0.1
temperature drift(%FS) ≤0.02
Operating voltage(V) 12~36V DC(Standard:24V)
Operating temperature -20~85
Overload capacity(%) >200
Life span more than 9 million times pressure cycle
Load resistance <750
Response time(ms) <1
Media Media compatible with 316L
Disphragm material 316L or the ceramic diaphragm
Housing material SUS304 or 316L
Pressure interface Fast clamp
Enclosure rating IP65
Weight 90g
