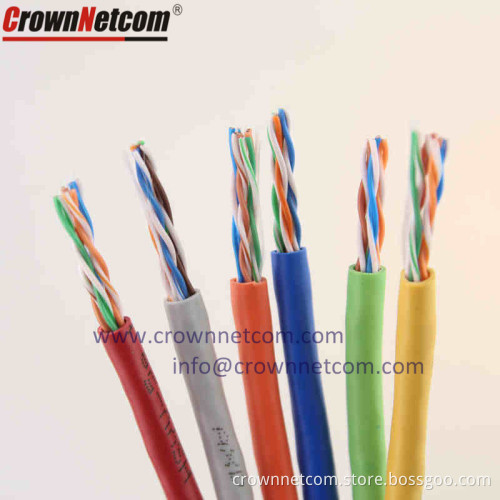

4 Pairs UTP Cat6 LAN Cable/Network Cable Cat6 Cable

4 Pairs UTP Cat6 LAN Cable/Network Cable Cat6 Cable

( info at crownnetcom.com)

(1,000,000 Boxes, Annual Production)

Conductor:

Material: Solid Bare Copper

Number of pairs: 4 pairs

AWG: 23AWG

Conductor diameter: 0.57 ±0.003mm

Insulation:

Material: HDPE and FRPE

Diameter: 1.02 ±0.005mm

Average thickness: 0.225mm

Minimum point thickness: 0.2245mm

First screen: Aluminum Foil (superposition rate: 25%)

Overall screen: 48/0.1mm TC braid shield (braid density: 40%)

Jacket rid cord: optional

Sheath:

Material: PVC or LSZH

Nominal diameter: 6.0 ±0.2mm

Average thickness: 0.55mm

Minimum point thickness: 0.545mm

Includes:

Central Cross Frame

Jacket:PVC / LSZH

Standard:

YD/T1019-2001, TIA/EIA-568B, ISO/IEC11801,ISO/IEC61156

Application :

Horizontal cabling in working area.Used in voice system,ISDN,

ATM-25/51/155Mbps,10BASE-T,100BASE-TX/T4,1000BASE-T,etc.
