uv led curing system for printer
- Payment Type:
- T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 999 |
| Supply Ability: | 999 |
| Payment Type: | T/T |
| Incoterm: | FOB,CIF |
| Certificate: | CE |
| Transportation: | Air |

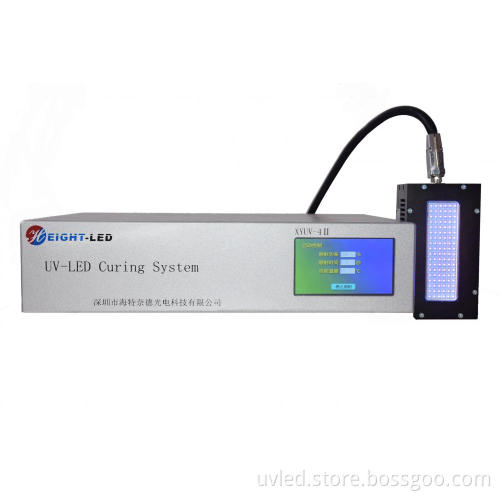

HTLD UV LED curing system contain two parts: Controller and Irradiation Head.

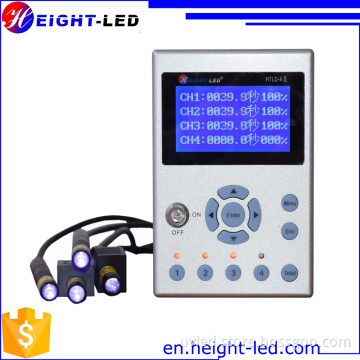

Controller Description
controller specifications
|
Type |
HTLD-4Ⅱ |
||
|
UV radiation heads |
Four(4 LED) |
||
|
The size of controller |
L185*W100*H125mm |
||
|
Terminal I/O |
Input |
Pedal switch & serial RS-232 communication signals |
|
|
Output |
serial RS-232 communication signals |
||
|
Cooling method of controller |
Semiconductor cooling |
||
|
Power supply voltage |
AC100~240V±10%(50/60HZ) |
||
|
Power consumed |
20W |
||
|
Ambient temperature and humidity |
Ambient temperature:-10℃-50℃ Relative humidity:25%-85%RH |
||
|
Dimming/Exposure control |
Digital Debugging,Manual exposure control,Foot control or timing control (0.1~9999S) |
||
|
Setting operation |
Using the operating switch is set,Power key parameter switch,RS-232 |
||
|
External Control |
External input |
Enter irradiation alone Irradiation stop input, Interlocking,All lights illuminated input,Query switch |
|
|
External output |
READY signal,Error signal,Warning Output,Busy output(Various skinhead),+5VOutput (indicator used) |
||
I will offer some size of the uv light for your consideration. If that do not meet your requirement, the size can be customized.
Product model &Emitting window size LXW(mm)
HTLD-2X150 2x150
HTLD-2X400 2x400
HTLD-3X240 3x240
HTLD-4X30 4x30
HTLD-4X70 4x70
HTLD-4X100 4x100
HTLD-4X300 4x300
HTLD-10X70 10x70
HTLD-10X150 10x150
HTLD-10X240 10x240
HTLD-20X25 20X25
HTLD-20X60 25X60
HTLD-20X100 20X100
HTLD-20X150 20X150
HTLD-20X200 20X200
HTLD-30X100 30X100
HTLD-30X200 30X200
HTLD-10X150 10X150
HTLD-10X250 10X250
HTLD-15X100 15X100
HTLD-40X200 40X200
HTLD-60X150 60X150
HTLD-100X100 100X100
HTLD-150X200 150X200
HTLD-30X120 30X120
Product Advantages
1. Extra-long life: 25000h~30000h ;
2.Energy saving: save 80% electrical energy than Mercury lamp ;
3.Environment friendly: NO mercury. NO Ozone;
4.NO warm-up time;
5.Low temputure;
6.UV output adjustment: From 1% to 100%;
7.Multiple control modes : pedal control, digital I/O, PLC and COM.
Shenzhen Height-LED Opto-electronics Technology Co., Ltd located in Shenzhen, Guangdong, China. Starting in 2007, Height-LED engaged in UV-LED curing UV ink, UV adhesive UV paint, UV varnish and other UV sensitive materials. Our team has more than 10 years combined experience in UV curing systems and can meet the requirements of each client.
