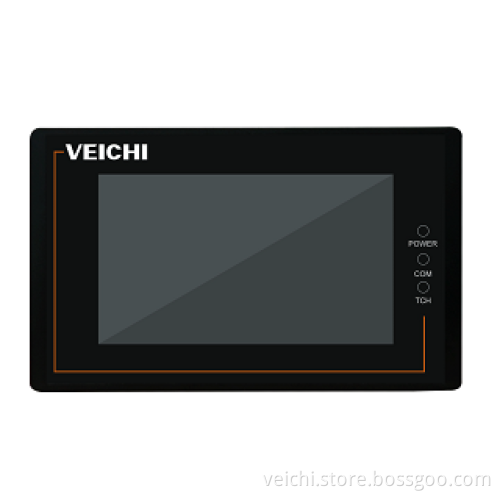

Veichi VI10-102 Series HMI is the best human machine interface in China. Veichi VI10-102 features:
- Improved TFT LCD touch screen display panel.
- Latest LED blacklight technology
- Screen resolution up to 480*800
- Multiple communication means and provide various serial ports for users to set
-
32- bit 400MHZ RICS and 128M memor
According to customer requirements, Veichi has developed 3 series of HMI, including VI10-043S, VI10-070 and VI10-102. Below are the technical specifications of Veichi VI10-102 series:
|
Performance Specifications |
|
|
Display Size |
10.2 inch true color TFT(219.6W×131.76Hmm) |
|
Resolution |
800×480 pixels |
|
Display Colors |
65536 color |
|
Brightness |
300cd/m2 |
|
Backlight |
LED |
|
Touch Screen |
4 line precise resistor network (surface hardness 4H) |
|
LCD Life |
50000 h |
|
CPU |
32-bit 400MHz RISC |
|
Memory |
128M FLASH + 64M DDRAM |
|
Power Down Memory RTC |
256KB+real-time clock |
|
Print Terminal |
Serial print/USB printer |
|
Ethernet |
Optional |
|
Program Download |
1 USB SLAVE interface |
|
USB Host |
1 USB Host |
|
Communication Terminal |
COM1:RS232/RS422/RS485 |
|
Electrical Specifications |
|
|
Rated power |
Less than 5W |
|
Rated voltage |
DC24V |
|
Input Range |
12~28VDC |
|
Allowance of Power Loss |
Less than 5ms |
|
Insulation Resistance |
More than 20MΩ 500VDC |
|
Pressure Endurance Test |
500V AC less than 1 min |
|
Structural Specifications |
|
|
Shell Color |
Black |
|
Material of Cover |
ABS plastic |
|
Dimension |
272W×200H×47.5Dmm |
|
Installation Hole Size |
260W×179Hmm |
|
Net Weight |
1.2kg |
|
Wet Weight |
1.7kg |
|
Product Certificate |
|
|
Panel Protection Grade |
Comply with IP65 certificate |
|
CE |
EN61000-6-2:2005, EN61000-6-4:2007 standard certificate |
|
Compatibility |
FCC Class A certificate |
