Fiber optic pigtail
- Payment Type:
- T/T
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
| Certificate: | Rohs |
| Transportation: | Ocean,Land,Air |

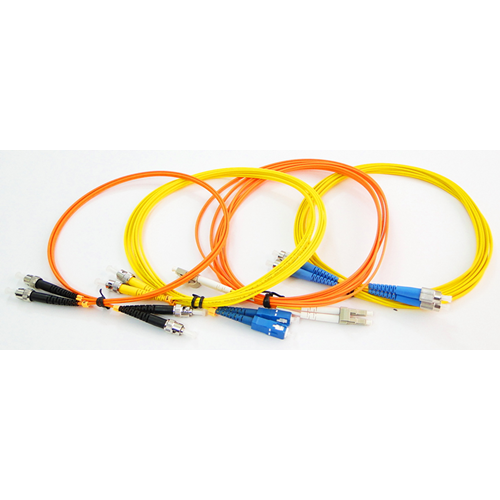

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in datacenters, head-ends, cellular hubs and central offices. The patch cord can be used in an interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.
Simplex Patch cord
Ø Meets Telcordia GR-326 Core and ROHS requirements.
Ø The connector could be SC, FC, LC, ST, MU, E2000 etc.
Ø The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
Ø The cable size could be 0.9mm, 1.2mm, 1.6mm, 2.0mm, and 2.8mm
Duplex Patch cord
Ø Meets Telcordia GR-326 Core and ROHS requirements.
Ø The connector could be SC, FC, LC, ST, MU, MTRJ, E2000 etc.
Ø The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
Ø The cable size could be 1.6*3.3, 2.0*4.1, 2.8*5.7
Loopback Patch cord
Ø Meets Telcordia GR-326 Core and ROHS requirements.
Ø The connector could be SC, LC, and MTRJ etc.
Ø The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
Hybrid Patch cord
Ø Both simplex and duplex is available too.
Ø Meets Telcordia GR-326 Core and ROHS requirements.
Ø The connector could be SC, FC, LC, ST, MU, MTRJ, E2000 etc.
Ø The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
Ø The cable size could be all kind of Simplex and Duplex
Break-out Patch cord
Ø The unit fiber is 2.0 or 2.8 simplex cable.
Ø Meets Telcordia GR-326 Core and ROHS requirements.
Ø The connector could be SC, FC, LC, ST, MU, E2000 etc.
Ø The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
Ø Fiber count: 4.6.8.12.24.48--
Optical Specification
|
Connector |
SC,FC,LC,ST,MU,E2000,MTRJ |
||
|
Polishing |
SM/UPC |
MM/PC |
SM/APC |
|
Insertion Loss(max) |
＜=0.30dB |
＜=0.30dB |
＜=0.30dB |
|
Return Loss(min) |
＞=50 dB |
＞=35 dB |
＞=60 dB |
|
Tensile Strength |
>70N |
||
|
Durability |
<0.20 dB typical change, 1000 matings |
||
|
Repeatability |
＜=0.1dB |
||
|
Storage , Operating Temperature [°C] |
-40~+85 |
||
Geometric Specification (only for 3D interferometer tested)
|
Connector |
Connectors |
PC End-face |
APC End-face |
|
Radius of Curvature |
SC/FC/ST |
10~25 mm |
5~12 mm |
|
LC/MU |
7~25 mm |
5~15 mm |
|
|
Apex Offset |
<=50 um |
||
|
Fiber Spherical Height |
+/- 50 nm |
||
|
Angular Offset |
------ |
8°± 0.2° |
|
Ø Clean and Scratch-Free End Face
Ø Proportional geometric test is applied to the normal production.
Ø 100% interferometer check is available under special requirement.
Length tolerance:
Ø 0<L<1m, 0< *L<5cm
Ø 1<L<10m, 0< *L<10cm
Ø 10m<L, 0< *L< Lx1%(normal is 10cm)
L: Cable total length. *L: tolerance.
