Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in datacenters, head-ends, cellular hubs and central offices. The patch cord can be used in an interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.
Simplex Patch cord
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC, FC, LC, ST, MU, E2000 etc.
The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
The cable size could be 0.9mm, 1.2mm, 1.6mm, 2.0mm, and 2.8mm
Duplex Patch cord
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC, FC, LC, ST, MU, MTRJ, E2000 etc.
The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
The cable size could be 1.6*3.3, 2.0*4.1, 2.8*5.7
Loopback Patch cord
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC, LC, and MTRJ etc.
The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
Hybrid Patch cord
Both simplex and duplex is available too.
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC, FC, LC, ST, MU, MTRJ, E2000 etc.
The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
The cable size could be all kind of Simplex and Duplex

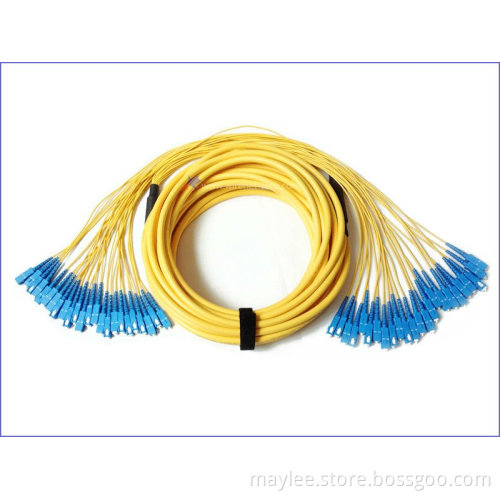

Break-out Patch cord
The unit fiber is 2.0 or 2.8 simplex cable.
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC, FC, LC, ST, MU, E2000 etc.
The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
Fiber count: 4.6.8.12.24.48--
Optical Specification
|
Connector |
SC,FC,LC,ST,MU,E2000,MTRJ |
||
|
Polishing |
SM/UPC |
MM/PC |
SM/APC |
|
Insertion Loss(max) |
<=0.30dB |
<=0.30dB |
<=0.30dB |
|
Return Loss(min) |
>=50 dB |
>=35 dB |
>=60 dB |
|
Tensile Strength |
>70N |
||
|
Durability |
<0.20 dB typical change, 1000 matings |
||
|
Repeatability |
<=0.1dB |
||
|
Storage , Operating Temperature [°C] |
-40~+85 |
||
Geometric Specification (only for 3D interferometer tested)
|
Connector |
Connectors |
PC End-face |
APC End-face |
|
Radius of Curvature |
SC/FC/ST |
10~25 mm |
5~12 mm |
|
LC/MU |
7~25 mm |
5~15 mm |
|
|
Apex Offset |
<=50 um |
||
|
Fiber Spherical Height |
+/- 50 nm |
||
|
Angular Offset |
------ |
8°± 0.2° |
|
Clean and Scratch-Free End Face
Proportional geometric test is applied to the normal production.
100% interferometer check is available under special requirement.
Length tolerance:
0<L<1m, 0< *L<5cm
1<L<10m, 0< *L<10cm
10m<L, 0< *L< Lx1%(normal is 10cm)
L: Cable total length. *L: tolerance.
