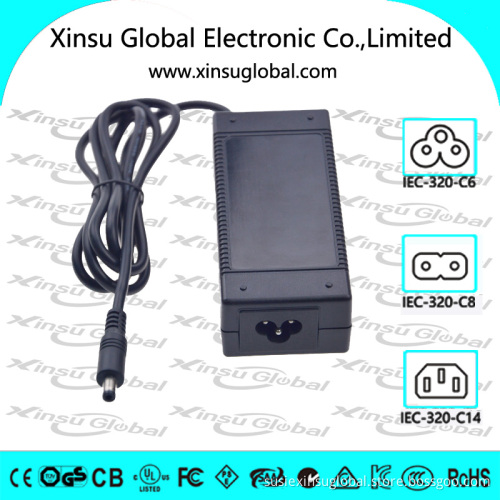

14.6V3A lead-acid battery charger with GS

Product Features:

Input	100-240VAC,50/60HZ
Input inlet	IEC-320-C6;IEC-320-C8;IEC-320-C14
Output	14.6VDC,3A
Output plug	Customized
Efficiency	≥85.861%
No Load	Power Consumption   ≤0.3W
Protection	Polarity protection;OVP;OCP;SCP
Charge Mode	CC~CV
LED	Charging status : Red/Charging;Green/Finished
HIPOT	3KVAC,5mA,60s
MTBF	50,000HRS
Operating	Temperature -20℃~ +45℃
Storage	Temperature -30℃~ +70℃
Dimension	116mm*52mm*34mm
Net Weight	0.25KG/PC
Package	White Box,50pcs/CTN
MOQ	200pcs
Lead Time	Sample:5days,Mass production:15-20days
Safety Standards	UL60950-1,CSA C22.2,IEC60950-1,AS/NZS60950,GB4943,EN60950, EN55022,EN61000,EN60335,J60950
Certificates	UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,LVD,EMC,KC,RCM,SAA,C-Tick,PSB
Energy Consumption	DOE:Ⅵ;Erp;Nrcan;MEPS
Environmental	Protection: RoHS,REACH
Application	For 12V lead-acid battery charger
Markets	Worldwide

Remarks:

• Warranty Period: 24 months
• Trade Currency :RMB,USD,HKD
• Payment Terms:Telegraphic Transfer,Paypal,Western Union
• Delivery Methods:Shipping,Air and Express Supported(Free in Guangdong Province)

---

Products Rcommendation:

MODEL	INPUT	OUTPUT
	Vac	W	Vdc	mA
XSG1462500	100~240	36.5	14.6	2500
XSG1463000	100~240	43.8	14.6	3000
XSG1463500	100~240	51.1	14.6	3500
XSG14614000	100~240	58.4	14.6	4000

"XSG" stands for Xinsu Global Electronic Co.,Limited

Variable [xxx" = 036-588, can be 036-588 to denote different output voltage,(3.6V~58.8V).

Variable [yyyy" = 0300-7000,can be 0300-7000 to denote different output current,(300mA~7000mA).

Class II Variable [zz" = Sales markets,Like EU for Europe, US for USA, CN for China, JP for Japan,
Blank Or WW for worldwide etc;
