16.8V1.5A lithium battery charger with PSE
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 6000000pieces/year |
| Supply Ability: | 500000pieces/month |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | UL60950-1,CSA C22.2,IEC60950-1,AS/NZS60950,GB4943,EN60950,EN55022,EN61000,EN60335,J60950 |
| Transportation: | Ocean,Land,Air |

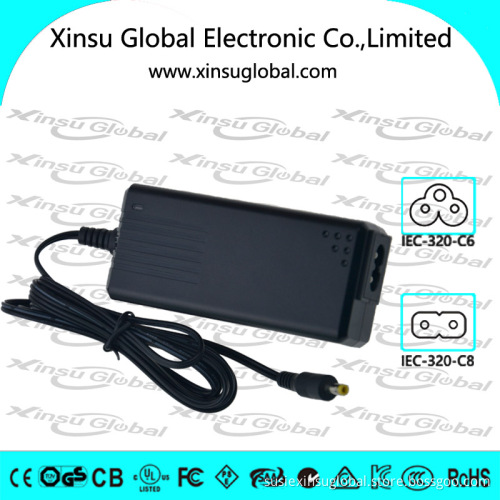

16.8V1.5A lithium battery charger
Product Features:
Input
100-240VAC,50/60HZ
Input inlet
IEC-320-C6;IEC-320-C8
Output
16.8VDC,1.5A
Output plug
Customized
Efficiency
≥86.383%
No Load
Power Consumption ≤0.1W
Protection
Polarity protection;OVP;OCP;SCP
Charge Mode
CC~CV
LED
Charging status : Red/Charging;Green/Finished
HIPOT
3KVAC,5mA,60s
MTBF
50,000HRS
Operating
Temperature -20℃~ +45℃
Storage
Temperature -30℃~ +70℃
Dimension
96mm*46mm*33mm
Net Weight
0.15KG/PC
Package
White Box,50pcs/CTN
MOQ
500pcs
Lead Time
Sample:5days,Mass production:15-20days
Safety Standards
UL60950-1,CSA C22.2,IEC60950-1,AS/NZS60950,GB4943,EN60950,
EN55022,EN61000,EN60335,J60950
Certificates
UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,LVD,EMC,KC,RCM,SAA,C-Tick,PSB
Energy Consumption
DOE:Ⅵ;Erp;Nrcan;MEPS
Environmental
Protection: RoHS,REACH
Applications
4 cell lithium battery,Laptop,Video,UAV,Electronic toys,Communication device.etc
Remarks:
Warranty Period: 24 months
Trade Currency :RMB,USD,HKD
Payment Terms:Telegraphic
Transfer,Paypal,Western Union
Delivery Methods:Shipping,Air and Express
Supported(Free in Guangdong Province)
Series Params:
Input
100-240VAC,50/60HZ
Input inlet
IEC-320-C6;IEC-320-C8
Output
16.8VDC,1.5A
Output plug
Customized
Efficiency
≥86.383%
No Load
Power Consumption ≤0.1W
Protection
Polarity protection;OVP;OCP;SCP
Charge Mode
CC~CV
LED
Charging status : Red/Charging;Green/Finished
HIPOT
3KVAC,5mA,60s
MTBF
50,000HRS
Operating
Temperature -20℃~ +45℃
Storage
Temperature -30℃~ +70℃
Dimension
96mm*46mm*33mm
Net Weight
0.15KG/PC
Package
White Box,50pcs/CTN
MOQ
500pcs
Lead Time
Sample:5days,Mass production:15-20days
Safety Standards
UL60950-1,CSA C22.2,IEC60950-1,AS/NZS60950,GB4943,EN60950,
EN55022,EN61000,EN60335,J60950
Certificates
UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,LVD,EMC,KC,RCM,SAA,C-Tick,PSB
Energy Consumption
DOE:Ⅵ;Erp;Nrcan;MEPS
Environmental
Protection: RoHS,REACH
Applications
4 cell lithium battery,Laptop,Video,UAV,Electronic toys,Communication device.etc
Model
Input
Frequence
Output
Plug type
Vac
HZ
Vdc
Amp
Watt Max
XSGxxxyyyyzz
100~240
50/60
3.6~58.8
0.3~5.0
36
Desktop
"XSG" stands for Xinsu Global Electronic Co.,Limited
Blank Or WW for worldwide etc;
