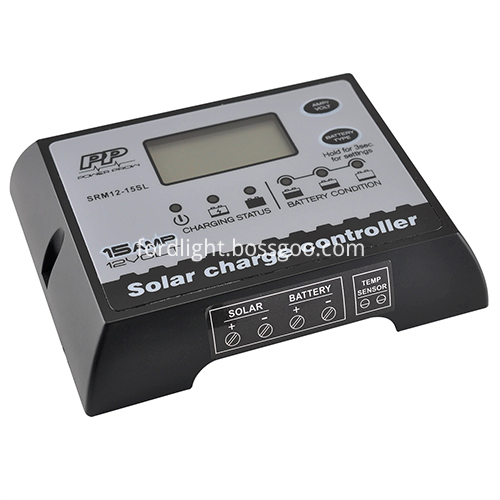

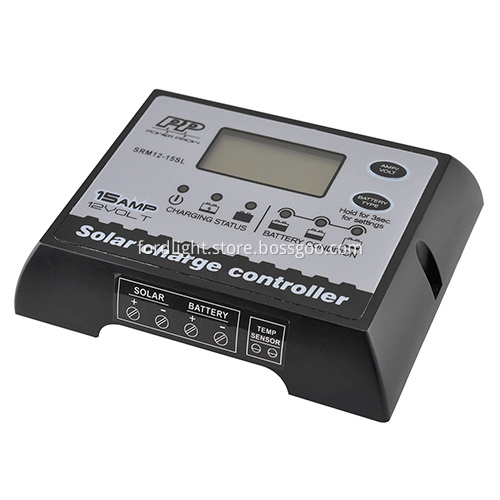

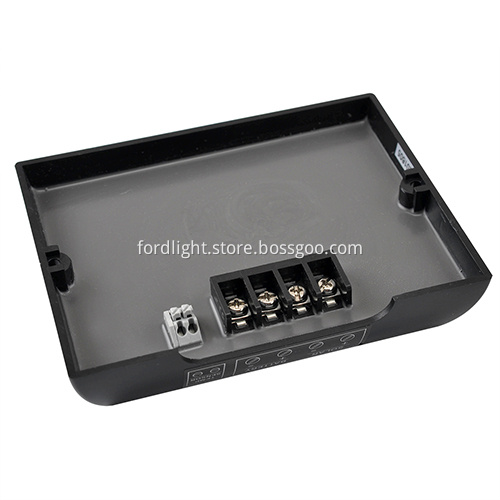

PWM 12V 15A Waterproof Solar Battery Charger

Solar Battery Charger Features and Advantages:
 1. PWM series Solar Battery Charger.
 2. Programmed control Solar Battery Charger.
 3. Solar Battery Charger has five charging stages.
 5. Memorize the previous setting.
 6. Accumulated charging Ampere hours.
 7. Pulse charge to recondition the battery.
 8. LCD displays all control mode and charging parameters.
 9. LED's to indicate battery status and faults.
 10. Common positive or negative grounding on one terminal.
 11. Temperature compensation.
 12. Monthly maintenance charge.

Solar Battery Charger Protection:
 1. Short circuit protection.
 2. Spark protection.
 3. Reverse polarity protection.
 4. Over voltage protection.
 5. Battery over voltage shut down.
 6. Battery current flow-back protection at night.
 7. Open circuit protection without battery.
 8. Over temperature protection.

Solar Battery Charger Electrical Specification:
 1. For solar panel 25V Max.
 2. Rated current (A)  15A
 3. Charge algorithm PWM, Constant voltage.
 4. Soft start voltage (V) 10.5
 5. Absorption voltage (V) 14.4/ 14.7 --- Sealed / Flooded Battery version.
 6. Absorption voltage (V 14.1/ 14.4 /14.7 /14.9 --- Gel / AGM / Flooded / Calcium Battery version.
 7. Equalization voltage (V) 15.5V
 8. Float Voltage (V) 13.6
 9. Self-consumption (mA) ≤5<br> Loop Voltage Drop (mV) ≤150
 10. Voltage accurancy in LCD NA
 11. Current accurancy in LCD NA
 12. Temp. Comp. ( mV/°C) -24
Solar Battery Charger General Specification:
 1. Compatible battery types Two or four battery types selection (depends on above different versions selected)
 2. Storage ambient temperature range (°C) -40~85
 3. Operating ambient temperature range (°C) -20~50
 4. Dimensions (H x W x D) 130mm X 102mm X 27mm
