Led Panel Ceiling Light 2835SMD
-
USD40.5≥100 Piece/Pieces
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China(Mainland) |
|---|---|
| Productivity: | 50,000pcs |
| Supply Ability: | 50,000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | CE ROHS |
| Transportation: | Ocean |
Features:

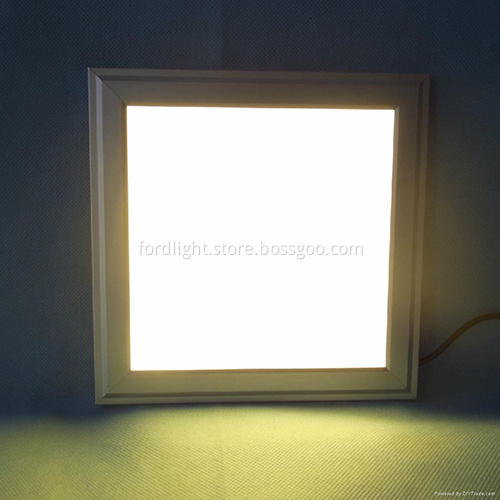

Led Panel Ceiling Light 2835SMD
1. Light Source: 2835SMD
2. Light Size : 600 x 600 x 8mm for Led Panel Ceiling Light.
3. Led Q'ty: 180 leds
4. Light Type: Led Panel Ceiling Light5. Input Voltage: AC85-265v for Led Panel Ceiling Light.
6. Ambient temperature: - 10℃ ~ 40℃
7. Led Panel Ceiling Light Lifetime: ≥ 100,000h
8. Led Panel Ceiling Light Beam angle: 120°
9. Installation methods for Led Panel Ceiling Light option: Hanging and Embedded
10. Certificate: TUV, CE, FCC, RoHS for Led Panel Ceiling Light approved,
11. Led Panel Ceiling Light Warranty : with 3 years
Parameter:
| Product NO. | LPL-007 |
| Paraameter | |
| Dimension: | 600×600×8mm |
| LED light source: | 2835SMD |
| Material: | Aluminum + PMMA |
| Working temperature: | -10℃ ~ 40℃ |
| Lifespan: | 100,000H |
| IP rate: | IP40 |
| Installation Method: | Embedded Hanging |
| N.W (±01Kg): | 3.18Kg |
| LED power: | 35Watt |
| Q'ty in series and parallel: | 10S 9P*2 |
| LED Q'ty: | 180pcs |
| Drive Current: | 56mA |
| Beam Way: | Beam at two sides |
| Photelectricity Parameter | |
| CCT: | 2900~6500K |
| Light Efficiency(±10%): | 88 lm/watt |
| Input Voltage: | AC100~240v |
| Input Power: | 46W |
| CRI: | Ra≥80 |
| Lux at 2meters(±10%): | 210lx |
| Dimmable: | Dimmable |
| Lighting Angle: | 120° |
| PF: | ≥0.9 |
Dimensions:
Testing Report:
NOTE:
1.When installation LED panel light, try to avoid the minefields, strong magnetic field and high-pressure region.
2.Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3.Installed in a well-ventilated place to ensure appropriate environmental temperature.
4.Using the led panel light, please check the local voltage compliance product requirements.
5.To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6.In case of failures, do not maintenance in private.
