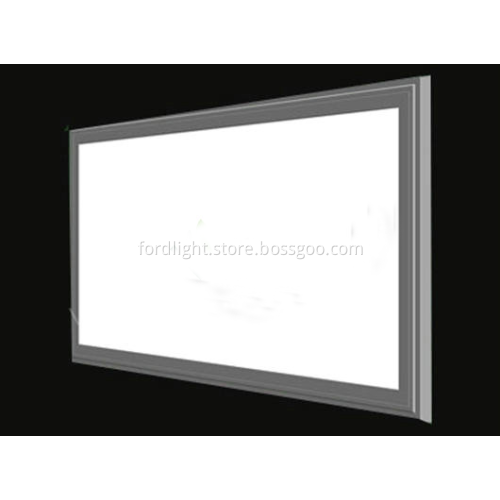

Led Panel Light 600x 1200x 12mm
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China(Mainland) |
|---|---|
| Productivity: | 50,000pcs |
| Supply Ability: | 50,000pcs |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | CE ROHS |
| Transportation: | Ocean |
Features:
Led Panel Light 600x 1200x 12mm
1. Led Panel Light Thickness:12mm
2. Light Source: 2835SMD
3. Light Size : 600 x 1200x 12mm
4. Led Q'ty: 396 leds
6. Input Voltage: AC100-240V℃
7. Led Panel Light Ambient temperature: - 10℃ ~ 40℃
8. Led Panel LightLifetime: ≥ 100,000h
9. Beam angle: 120°
10. Led Panel Light Certificate: TUV, CE, FCC, RoHS approved
Parameter:
| Product NO. | LPL-009 |
| Dimension: | 600×1200×12mm |
| LED light source: | 2835SMD |
| Material: | Aluminum + PMMA |
| Working temperature: | -10℃ ~ 40℃ |
| Lifespan: | 100,000H |
| IP rate: | IP40 |
| Installation Method: | Embedded Hanging |
| N.W (±01Kg): | 8.7Kg |
| LED Q'ty: | 396pcs |
| Beam Way: | Beam at two sides |
| CCT: | 2900~6500K |
| Input Voltage: | AC100~240v |
| Input Power: | 46W |
| CRI: | Ra≥80 |
| Dimmable: | Dimmable or Non Dimmable are available |
| Lighting Angle: | 120° |
| PF: | ≥0.9 |

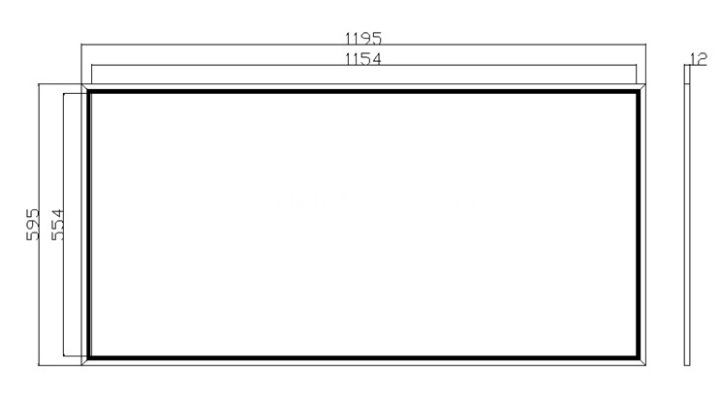

Dimensions:
Testing Report:
NOTE:
1.When installation LED panel light, try to avoid the minefields, strong magnetic field and high-pressure region.
2.Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3.Installed in a well-ventilated place to ensure appropriate environmental temperature.
4.Using the Led Panel Light, please check the local voltage compliance product requirements.
5.To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6.In case of failures, do not maintenance in private.
