1.3MP IR IP Bullet Camera , Varifocal CCTV Camera with Auto
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

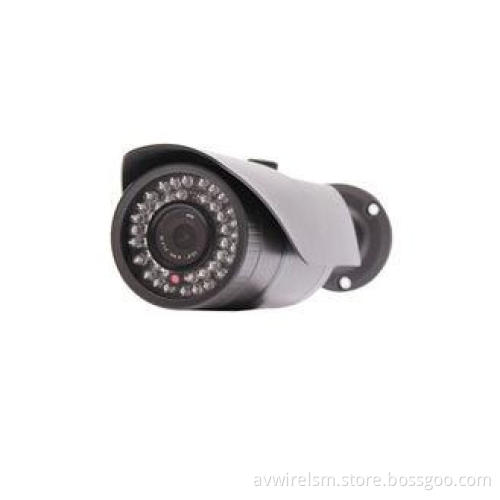

ONVIF 1.3MP IP Bullet Camera , Black 3.7-14.8mm Automatic Varifocal Lens P2P Camera
Features:
- 1/3" 1.3 Megapixel Low illumination CMOS, 3.7-14.8mm automatic varifocal lens ,4xZOOM Max image Resolution1280*960 @25fps
- H.264 Main Profile @ level 3.0 coding, Real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable
- Support Color/BW mode converting, IR-CUT Filter
- Build in Motion Detection, support alarm linkage, Supports alarm input and output
- Support bi-directional real time audio transmission(Built-in MIC)
- Auto-retrieve function and auto-connection network
- Support Plug-and-Play, including PC surveillance platform and mobile client, Easy to remote, all you need is our IP camera ID and password only
- Integrated ONVIF standard, Compatibility with third-party ONVIF platform software
- Waterproof, Outdoor use for inclement weather conditions
We have higher resolution such as 1080P for optional, please contact us for detail.
Specifications:
|
Model
|
KP-IPB11L
|
|
Hardware
|
|
|
Processor
|
|
|
Sensor
|
1/3" 1.3 Megapixel Low illumination CMOS
|
|
Lens
|
3.7-14.8mm automatic varifocal lens
|
|
IR LED
|
48 IR LEDs, IR Distance 10~45m
|
|
Day/Night
|
ICR filter
|
|
Min. Illumination
|
0.1lux; 0 lux with IR on
|
|
Max S/N Ratio
|
50dB
|
|
Video
|
|
|
Compression
|
H.264
|
|
|
main stream: 1280x960@1-25fps
1280x720@1-25fps
sub stream: 640x480@1-25fps
320x240@1-25fps
|
|
Bit Rate
|
128~4096kbps, Supports CBR/VBR
|
|
Image Control
|
Hue, saturation, brightness, contrast, exposure
|
|
Auto Image Control
|
AE, AWB
|
|
Audio
|
|
|
Compression
|
G.711-A
|
|
Bit Rate
|
64kbps/128kbps
|
|
Talkback
|
support
|
|
Network
|
|
|
Protocol
|
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP
|
|
Compliance
|
ONVIF 2.1(1.02 backward compatible)
|
|
PC Client and Browser
|
ISS, IE6.0 and above
|
|
Mobile phone
|
Iphone, ipad, Android
|
|
WIFI
|
support
|
|
WIFI Encryption
|
WAP, WAP2
|
|
Interface
|
|
|
Video Output
|
NA
|
|
Audio Input
|
1 CH 3.5mm audio interface, MIC IN/LINE IN
|
|
Audio Output
|
1 CH 3.5mm audio interface
|
|
Alarm Input
|
NA
|
|
Alarm Output
|
NA
|
|
LAN
|
1 RJ45 10M/100M Ethernet port
|
|
RS-485
|
NA
|
|
Storage Interface
|
Built-in Micro SD (TF) Card slot, SD 2.0 standard, maximum 32GB
|
|
Reset Button
|
YES
|
|
General
|
|
|
Working Temperature
|
-10°C ~ +55°C
|
|
Working Humidity
|
0% - 90%
|
|
Protection Level
|
IP66 Rated Waterproof
|
|
Power Supply
|
DC 12 V/1A
|
|
Power Consumption
|
5.1W with IR ON ; 2.4W with IR OFF
|
|
Dimensions
|
83*88*280mm
|
|
Weight
|
600g
|
