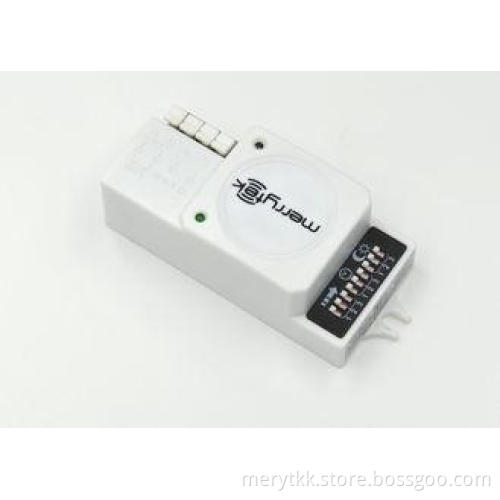

Temperature Control Microwave Motion Sensor Switch Automatic
Description
1. Automatic switching based on motion and ambient light level.
2. Zero-crossing point operation helps protect the sensor against in-rush current.
3. 5.8GHz high frequency microwave(C-Band license-free operation)
4. 4-pole press-in terminal (L, N, N,L′),easy assembly.
5. Detection area, time delay and Temperature threshold can be precisely set via DIP switch.
6. MC008S T is a innovation motion sensor to switch on off based on movement and Temperature .offer the end user a comfortable service .
Function:
ON-OFF function
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
Inductive:400W |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 3m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-20℃~60℃ |
|
Hold time |
10S/60S/90S/3min/5min/10min |
|
Detection sensitivity |
10%/25%/50%/75%/100% |
|
Temperature |
22℃±2℃,24℃±2℃,26℃±2℃,28℃±2℃ |
|
Life time |
30,000 hours |
|
Guaranty |
3 years |
Applications:
Washroom , etc
