Product Description
Product Description

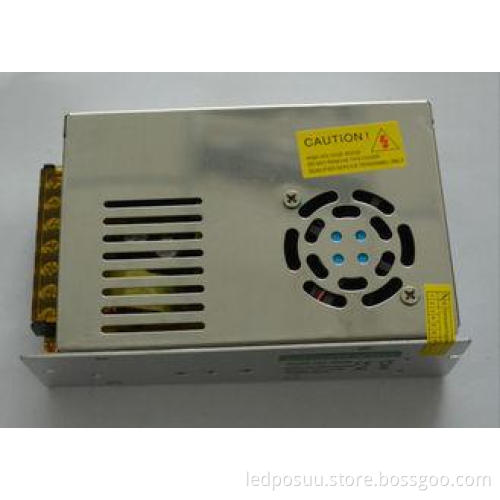

IP20 Non-waterproof LED Strip Power Supply Metal Case DC 12V 250W 20.8A
1. Quick Detail
1. High efficiency
2. 2 years warranty
3. Enough power
4. Working stability
2. Specification
| Model | PJ250 - H1V12 |
| AC input voltage range | 100 - 132 VAC 170-264 VAC 47 - 63Hz |
| Input current | 3.4A / 115V 2A / 230V |
| AC inrush current | Cold - start current 50A / 230V |
| Leakage current | < 3.5 mA / 240 VAC |
| DC adjustable range | + - 10% rated output voltage |
| Over load protection | 105-135% hiccup mode, auto-recovery |
| IP grade | IP20 |
| Setup rise hold up time | 200ms 100ms 20ms |
| Withstand voltage | I / P - O / P : 1.5 KvAC 1 minute |
| I / P - FG : 1.5 KvAC 1 minute | |
| O / P - FG: 0.5 KvAC 1 minute | |
| Working temperature | ~10 ° c ~ + 60 ° c , 20% ~ 90% RH |
| Weight / packing / Size | 0.54kg , 50pcs / 29.40 kg , 545*295*350 mm |
| Efficiency | 80% |
3. Competitive Advantage
1. All of our materials purchase from the field of the professional of LED driver suppliers. And guarantee all use new material.
2. Each power supply have been 4 hours of aging time.
3. All products have to pass strict inspection before they go out.
4. Test equipments, we have SM - 268 ACTIVE load, Withstand voltage test, Oscilloscope ……
Welcome to contact us for details, looking forward to a nice cooperation with you!
