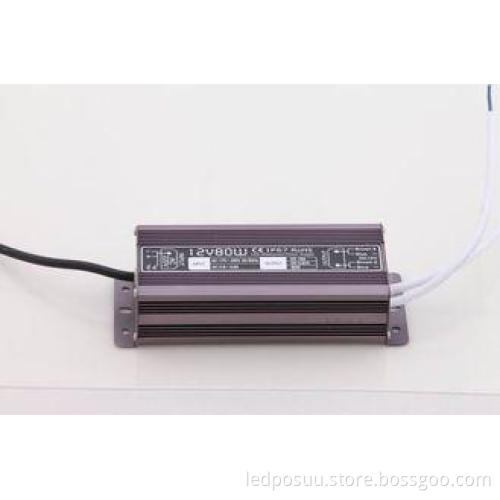

CE 80W 12V 24V LED Strip Power Supply Variable Voltage coffee for 2 years Warranty
1. Specification
|
SJ80 - W1V12 | |
| AC input voltage range | 100 - 264VAC 47 - 63HZ | |
| Input Current | 1.2A / 115V ; 0.65A / 230V | |
| AC inrush current | Cold - start current 36A / 230V | |
| Leakage current | < 3.5mA / 240VAC | |
| Over load protection | 115 - 135 % hiccupmode,auto-recovery | |
|
115-135% Cut off the output,auto-recovery | |
| Over - temp protection | ≧ 85% ° c Cut off the output, auto-recovery | |
| IP grade | IP67 | |
| Setup rise hold up time | 200ms 100ms 30ms | |
| Withstand voltage | I / P - O / P: 1.5 KvAC 1 minute | |
| I / P - FG:1.5 KvAC 1 minute | ||
| O / P - FG: 0.5 KvAC 1 minute | ||
| Working temperature | ~ 40 ° c ~ + 80 ° c, 20% ~ 90% RH | |
| Weight / packing / Size | 0.87kg, 20pcs / 20kg, 169*69*43mm |
2. Competitive Advantage:
1. Price. You buy from the factory directly, save cost in the middle.
2. Quality. The power supply main parts is producted by ourself, we can control the quality better.
3. Professional. Each employee through professional training.
4. technology. We have one excellent engineer design team with rich experience.
3. Warranty treatment:
1. 2 years warranty.
2. 100% burnt-in test, 100% inspection by QC department.
3. We provide the new replacement to customers if it failed in 2 year warranty period.
4. We make sure the defective under 3/1000.
5. It can be used under IP54 level.
