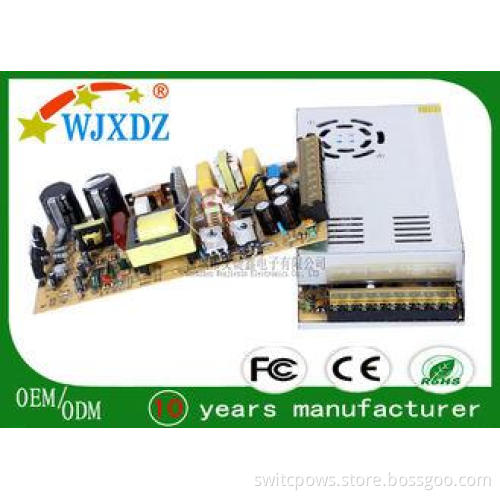

High Efficiency LED Display Power Supply 60A , 300 Watt Switching Power Supply
Description:
- Protection: short circuit, over load, over heat and over voltage
- High efficiency and reliability
- Air cooled automatically with fan
- Built-in EMI filter, low ripple and noise.
- Full range AC input
- 100% full load burn-in test
- Warranty 2 years
Specification:
|
Switching power supply |
WJX-S-300W-5V |
|
|
OUTPUT |
DC Voltage |
5V |
|
Current Range |
0~60A |
|
|
Rated Current |
60A |
|
|
Rated Power |
300W |
|
|
Ripple & Noise(max.) |
<250mVp-p |
|
|
Voltage ADJ.Range |
4.5~5.6V |
|
|
Voltage Tolerance |
+/- 2.0% |
|
|
Line Regulation |
+/- 0.5% |
|
|
Load Regulation |
+/- 1.0% |
|
|
Setup,Rise Time |
200ms,100ms/230VAC |
|
|
Hold up time |
20ms/230VAC |
|
|
INPUT |
Voltage Range |
110-260VAC |
|
Frequency Range |
47-63Hz |
|
|
Efficiency(Typ.) |
80-88% |
|
|
AC Current |
4.12A/230VAC |
|
|
Inrush Current(max.) |
70A/230VAC |
|
|
Leakage Current |
< 0.5mA /240VAC |
|
|
Protection |
Over Load |
105 ~ 150% rated output power |
|
Protection type: Constant current limiting,recovers automatically after fault condition is removed |
||
|
Over Voltage |
115%~ 135% |
|
|
Protection type: Shut down O/P voltage,re-power on to recover |
||
|
Over Temperature |
90℃ +/- 5℃ |
|
|
Protection type: Shut down O/P voltage,recovers automatically after temperature goes down |
||
|
Function |
Fan on/off control(Typ.) |
RTH2≧50℃ Fan on,≦45℃ Fan off |
|
Environment |
Working Temp. |
-40 ~ +60℃ (Refer to output load derating curve) |
|
Working Humidity |
20 ~ 90% RH, non-condensing |
|
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
|
|
Temp.Coefficient |
+/-0.03%/℃ (0 ~ 50℃) |
|
|
Vibration |
10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes |
|
|
Safety |
Safety standards |
CE & RoHS |
|
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
|
Isolation Resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH |
|
|
Others |
MTBF |
271.9K hrs min. MIL-HDBK-217F(25℃) |
|
Dimension |
215*115*50mm (L*W*H) |
|
|
Packing |
0.85kg; 30pcs/26Kgs/Carton |
|
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature. |
|
Applications:
* LED display
* LED Lighting
* Stage
* Military project
* Communication security equipment
* indoor and outdoor advertising screens
* New energy and other Various industries
