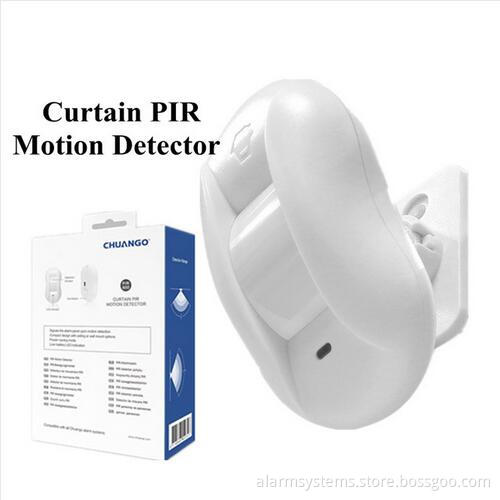

Exclusive home security intruder detectors wireless Curtain PIR motion sensor

Exclusive home security intruder detectors wireless Curtain PIR motion sensor for Chuango GSM Alarm System G5/ B11/ G3

Based on proprietary infrared spectrum detection technology, when human moves within the scope, the sensor receives the signal and inputs it into microprocessor after magnification. It works well in settings like balconies, window/door sides and corridors.

Note: can only work for Chuango Alarm System

Specifications

Power Supply DC 3V (AAA LR03 1.5V Batter y x 2pcs)
Static Current ≤50uA
Alarm Current ≤9.5mA
Detection Distance 5m
Curtain Detection Angle 15°
Transmitting Distance ≤80m (in open area)
Radio Frequency 315MHz
Housing Material ABS Plastic
Operation Condition Temperature: -10°C ~+55°C
Relative Humidity: ≤80% (non-condensing)
Detector Dimensions 48 x 33 x 88mm (L x W x H)
Mounting Plate Dimensions 52 x 30 x 11.6mm (L x W x H)
