Feetech Servo Motor Controller for Kinds of Small Mobile Platform Robot FT-SMC-2CH
- Payment Type:
- T/T, Western Union, Paypal
- Incoterm:
- EXW
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Productivity: | 100000/month |
Supply Ability: | 100000/month |
Payment Type: | T/T,Western Union,Paypal |
Incoterm: | EXW |
Certificate: | CE,Rohs |
Transportation: | Air |
Product Description
Product Description

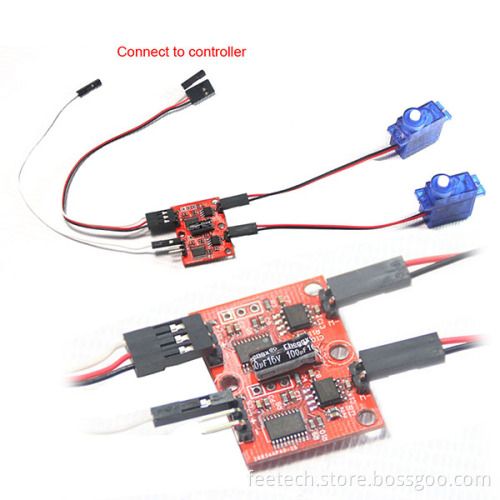

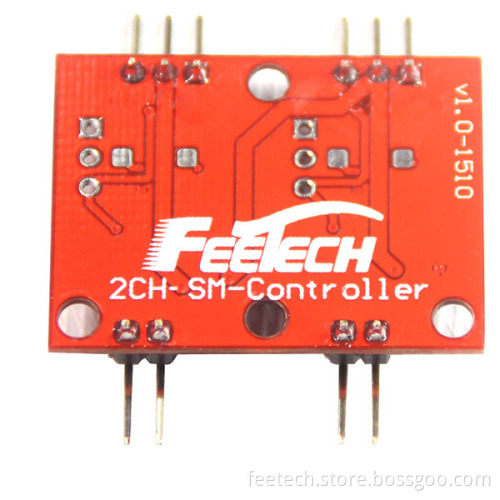

FEETECH Servo Motor Controller For Kinds of Small Mobile Platform Robot FT-SMC-2CH
Features
Can be reprogram by FEETECH programmer
Easy to control 2CH DC motor
Control DC motor to bidirectional continuous rotation
The speed is linear response to PWM
Accepts four mounting screws
Easy to interface with any Arduino microcontroller or PWM-capable device
Weighs only 3.5 g
Apply to kinds of small mobile platform robot
Specification
Weight: 3.5g
Dimension (L*W*H): 34mm * 25mm * 7.5mm
Controller: STM8F003F3P6
Working Voltage Range: 4V~9V (2CH + and - connect together)
Recommended Voltage: 6V
IDLE Current: 10Ma
1CH Continuous Load Current: 1.3A
Working Temperature: -5 °C- 60°C
Communication Protocol
The Servo motor controller is controlled through pulse width modulation.
Rotational speed and direction are determined by the duration of a high pulse,
in the 1000us--2000us range.
In order for smooth rotation, the servo needs a 20 ms pause between pulses.
As the length of the pulse decreases from 1500us,
the servo will gradually rotate faster in the counter-clockwise direction.
Likewise, as the length of the pulse increases from 1500us,
the servo will gradually rotate faster in the clockwise direction,
About us
Shenzhen FEETECH RC Model Co., Ltd. is specialized in researching, developing, manufacturing and selling the top quality RC servos to all over the world.We have a professional R&D team devoted to pursue the utmost usage of RC Servos according for the RC robot and RC car/ helicopter / airplane / boat, and industrial application products.
The products of FEETECH had passed CE,ROHS standard, Each single product is checked and tested through a series of strict and accurate QC (Quality Control) process by leading edge technology facilities.
We also provide ODM and OEM service, and offer the lowest price with the highest quality, the best manufacture process and the ideal products to you.
The brand of "FEETECH" is based on the concepts of Flying, Excellent, Efficient and Technology.
Our mission is to be a provider of the products with best quality and best service.
Looking forwards to our cooperation and mutual development.
Our service:
Specialized in ODM and OEM and Custom Made
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
Payment
We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
