Product Description

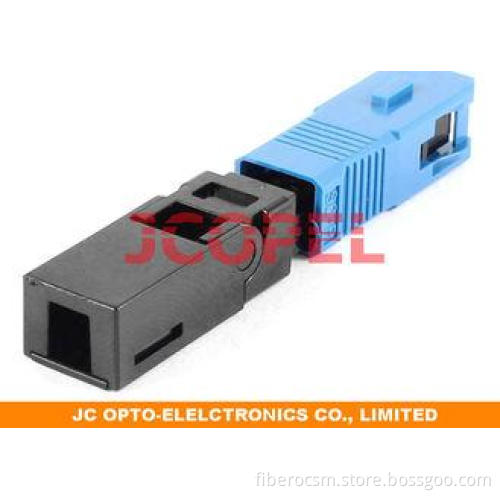

SM FTTH Fiber Optic Fast Connector Concentering SC Fibre Connectors 3.0x2.0 mm Cable

Optical Fast connector can provide a quick and easy termination of fibers in the field and options

are available for 900um to 3.0mm cable. Allowing the installer to terminate and make connection in

minutes at equipment and fiber patch panels. This connector system removes any requirement for

epoxy, adhesives or costly curing ovens. Pre-polishing , Low loss and Relaible quality made it very popular in FTTH project.

Features

Application

Technical Specification:

Item	Technical Data
Cable type	3.1×2.0 mm drop cable
Connector type	SC/APC or SC/UPC
Fiber dimension	125μm
Cover dimension	900μm
Fiber type	SM
Insertion loss	0.3dB,max 0.5dB(1310nm&1550nm)
Return loss	UPC ≥50dB APC≥60dB
Tensile strength	>50N
Operating temperature	-40°C ~+75°C
Storage temperature	-40°C ~+80°C
Temperature cycling	IL change≤0.3dB,RL change≤5 dB
Vibration	IL change≤0.3dB,RL change≤5 dB
Low Temperature Storage-40°C	IL change≤0.3dB,RL change≤5 dB
Damp Heat,85°C,85%H	IL change≤0.3dB,RL change≤5 dB
Tensile test online 20N	IL change≤0.2dB,RL change≤5 dB
Mechanical durability 500times	IL change≤0.2dB,RL change≤5 dB
