High Quality Co-Extruded PE Protection Film Machine
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 45 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ShenZhen,China |
|---|---|
| Productivity: | 135kg/h |
| Supply Ability: | 20-50sets/m |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ISO90001:2008 |
| HS Code: | 8477800000 |
| Transportation: | Ocean |
| Port: | Shenzhen |
High Quality Co-Extruded PE Protection Film Machine CL-55/70A
Model: CL-55/70A
Width of Die Head: 1250mm
Width of Film: 1000mm
Thickness of Film: 0.01-0.05mm
Structure of Film Layers: A/B or A/B /C
Liner Speed of Machinery: 120m/min
Max Extrusion Capacity: 135kg/h
Max Rewind Diameter: 400mm
Screw Diameter: 55/70mm
L/D Ratio of Screw: 30:1
Motor Power of Main Machine: 15/22kw
Total Power: 13-70kw
Overall Dimensions(L*W*H): 7.3*4*3.6m
Total Weight: 8T
Machine Specification: High Quality Co-Extruded PE Protection Film Machine
1- The fit materials: LLDPE
2- PLC Automatic roll changer, automatic filter changer,
3-Automatic loader and auto edge film recycling unit.
4-100CC gear pump and American sensor system to control the extruder output at 100% uniformity,which make the film more uniformty, good tensile strenth and good anti- puncture.
Features: High Quality Co-Extruded PE Protection Film Machine
1- Doubele screws stretch protective film extruder's alloy screwadopts special mixing refining function and high plasticity design to ensure good plasticization, good transparency and greatly improving the capacity.
2-Pe film extruder's T-Die adoptimport top speical mould steel, which professional materials on PE plasticity. By our high precision process and treatment to ensure the long service life of T-Die without any deformation.
3- The Cooling rolleris bi-directional loop design and helix runner inside cooling steel roller to ensure the same temperature of roller surface.
Application Stretch Film Extruder PE Protective Film Making Machine
The stretch film making by this machine is used for packaging and storing cooked food, uncooked food, meat, vegetable and fruit and seafood ets. In supermarket, hotel, dinning-hall and food factory.

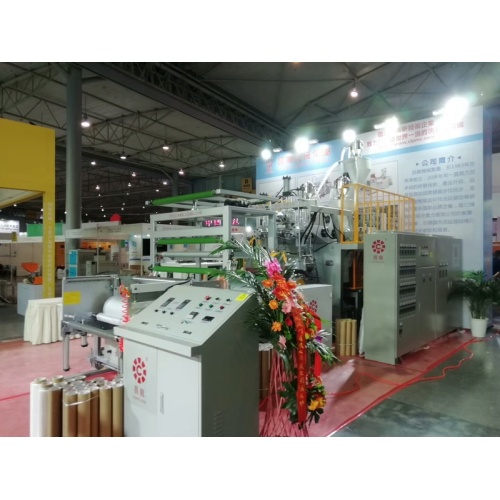

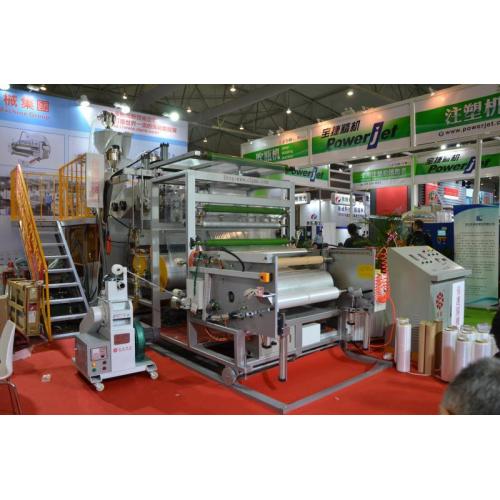

Workshop Stretch Film Extruder PE Protective Film Making Machine
Certificate
Plastic Machine PE Stretch Film Machine passes CE certificate, most professional, high output!
Packing
Exhibitions
After-Sales Service
Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time, give a good technical training to ensure the product in best state perennially.
We will respond to customer`s service requests and complaint in the shortest possible time, give a clear reply and solution to deal with in time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate. We will commit to improve our services quality, so that our customers will be most satisfied.
We offer warranty on product quality and lifelong maintenance services.
Warmly Welcome to Visit Our Factory
