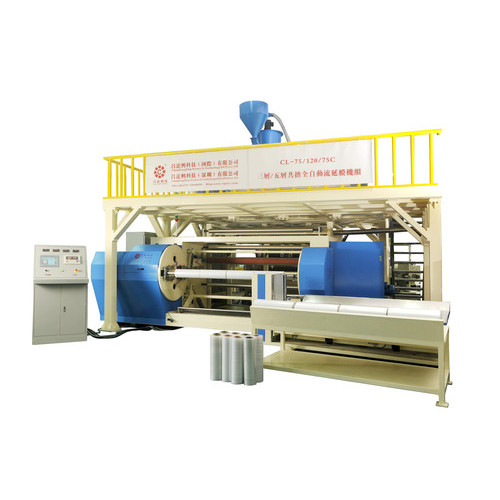

High Quality Co-Extrusion Stretch Film Machine

2000mm three/five layers high quality co-extrusion stretch film machine

This co-extrusion stretch film machine uses LLDPE, PE, CPE, PP as main material and adopts several kinds of resigns to produce the single or double-side self-sticky stretch wrapping film,cling film,emossing film, the film has good tensile strength,anti-pricking ablilty and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.The transparency and tensile strength of this product can make the packaging economical and practical.

Pe Co-extrusion film machine Main Technical Parameter:

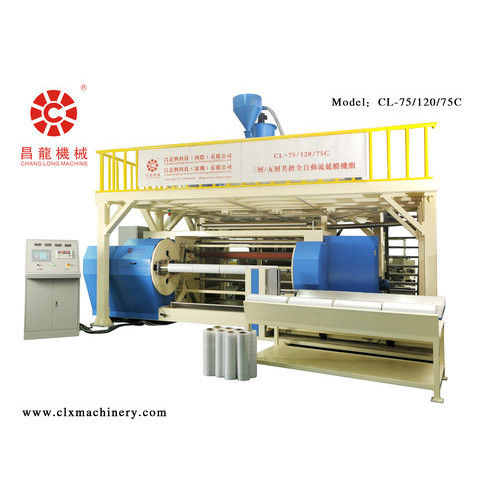

Model: CL-75/120/75C

Width of Die Head: 2500mm

Width of Film: 2000mm

Thickness of Film: 0.01-0.05mm

Structure of Film Layers: A/B/C or A/C/B/C/A

Liner Speed of Machinery: 300m/min

Max Extrusion Capacity: 625kg/h

Max Rewind Diameter: 460mm

Screw Diameter: 75/120/75mm

L/D Ratio of Screw: 30:1

Motor Power of Main Machine: 37/110/37kw

Total Power: 120-300kw

Overall Dimensions(L*W*H): 12.5*8*5.1m

Total Weight: 32T

Features:

1. This pe co-extrusion stretch film machine combines with advanced technology in Europe and America, which adopt Germany Siemens PLC system control, frictionless cylinder winding with tension adjustment settings, which is the tension closed-loop control system to achieve constant tension.

2. The pe film maker whole line comes true fully automatic production, based on traditional automatic cut film, increase automatic change paper core and automatic unloading finish film system, ensure stable extrude with high output, high linear speed and save cost.

3. The pe film stretch machine whole line adopt 150CC melt metering pump with precision sensor pressure gauge. Strictly control plastic extruder output, ensuring finish film stable and maintain a uniformity.

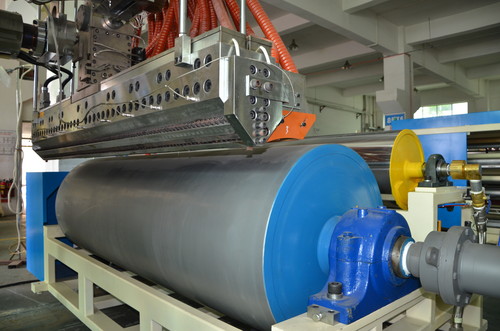

4. Cooling roller of Co-extrusion stretch film machine adopt big diameter design and special double deck runner, greatly improving the cooling effect in high speed producing process and ensure the same temperature of cooling roll surface.

Application

The film produced by this high quality co-extrusion stretch film machine can be widely used in wrapping of pelletized goods,it`s a good substitude for hot shrinking packing film during transportation.

Certificate

Packing

After-Sales Service

Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time, give a good technical training to ensure the product in best state perennially.

We will respond to customer`s service requests and complaint in the shortest possible time, give a clear reply and solution to deal with in time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate. We will commit to improve our services quality, so that our customers will be most satisfied.

We offer warranty on product quality and lifelong maintenance services.
