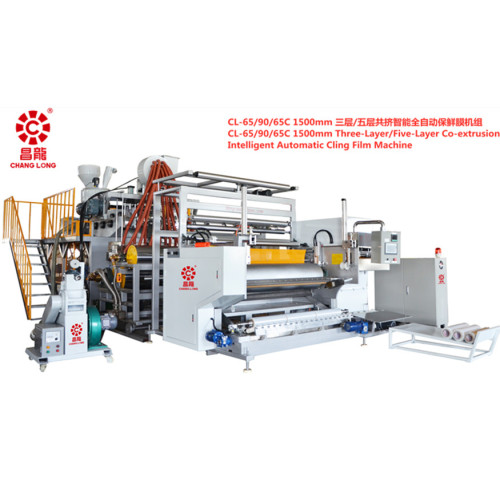

Machine specification

Model:CL-65/90/65C                                              Width Of Film:1500mm

Screw Diameter:65/90/65mm                                Thickness Of Film:0.01-0.05mm

L/D Ratio of Screw: 30:1                                         Max Rewind Diameter:400mm

Width Of Die Head: 1850mm                                 Membrane Structure:A/B/C 或A/C/B/C/A

Line Speed Of Machinery: 150m/min                     Motor Power Of Main Machine:22/55/22KW

Advantage

★ Edge material Using online independent traction devices

★ Winding roll: Use the high quality steel and special processing gush arenaceous (make films produced when coiling bubble natural ruled out)

★ Automatic material cutting and coil changing device (patented technology), safe and reliable.

★ The cooling roller adopts the double-layer circulation cooling system with

large diameter, many inner helical ways make the temperature of the roller  equally，highly improved the cooling effect and cooling speed.

★ Air Shaft automatic upper and return: The device is designed meticulously by our company, to apply for a patent and the patent department, make the heavy air shaft automatic upper and return, simple, easy to operate,save artificially, improve work efficiency.

★ Melt pump metering system with Italy Gefran pressure sensor and pressure gauge systems. Which can exactly control the melt extrusion each minute and the pressure, then control the precision and stable the extrusion. Make the film more good puncture resistance,strong tensile-strength. Save MLLDPE Production cost.

★ Mechanical automatic loading and unloading paper tube (patent technology):

  automatic online push the finished production, loading the paper tube, pipeline operation，greatly reduce the labor intensity, the maximum improves the work  efficiency

Application

The film can be widely used in wrapping of pallet packaging,storage packaging,manual packaging and so on.

Certificate

The company is a national high-tech enterprises

This product has passed the CE certification and ISO certification

Product Package

 Seller provides the simple pearl wool with film package & wooden motherboard.

Client Cooperation

The sales network covers more than 80 countries and regions around the world.

After-Sales Service

The seller freely provides the fittings during the warranty for 12 months with maintenance

    forever when the equipment is tested OK(Human factor and force irresistant factor exception).
