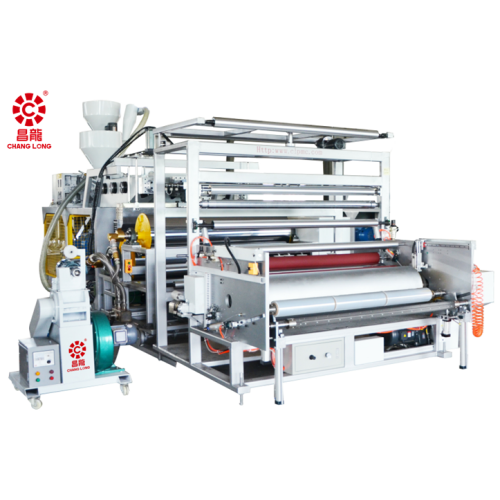

Automatic Co-extrusion Casting Film Machine 1500 mm

PE Co Extruded Film Machinery Wrapping Film Machine CL-65/90A

Company show

Machine specification

         1、Thickness adjustment scope：10µm-50µm；

         2、Equality percent of thickness：≤±5%；

         3、Width of effective film：1 500mm(max) or 3*500mm ;

         4、Structure of film layers：A/B or A/B/A Co-extruded;

         5、The fit material：LLDPE,LDPE, MLLDPE；

         6、Extrusion capacity(max)：200kg/h;

         7、Installation dimension(L*W*H): 8*3.5*4.0;

         8、Weight: 10.2T.

Features :

1.The alloy screw adopts special mixing funcation and high plasticizing capacity to ensure good plasticization,uniform color and greatly improved extrusion.

2.The diameter of the cooling roller is increased,and the internal double-loop design and built-in spiral flow path uniform temperature of the roller surface.

3.The winding frame adopts the middle aisle platform to facilitate the monitoring of the thickness and adjustment of the film on the line.The cutting knife can be replaced, and the double-sided non-stop cutting knife can be realized, which is safe and easy to operate.

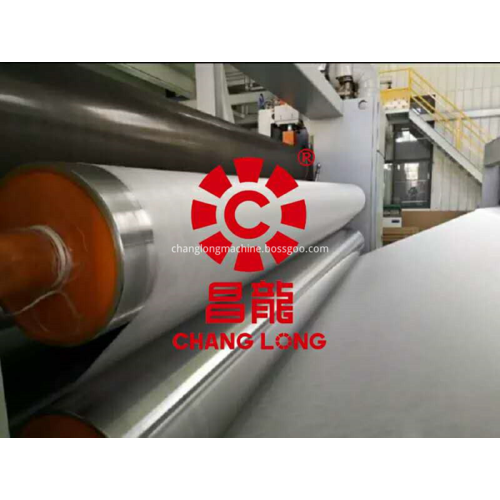

Workshop

Application

The film can be widely used in wrapping of pallet packaging, storage packaging, manual packaging and so on.

Packing :

The seller provides the simple pearl wool with film package & wooden motherboard

Certificate

The company is a national high-tech enterprises

This product has passed the CE certification and ISO certification

Exhibition :

Service

Warranty period and testing procedure:

The seller freely provides the fittings during the warranty for 12 months with the maintenance forever

when the equipment is tested OK. (Human factor and force irresistant factor exception.)

The seller provides the debugging and setting, Seller free to provide about two weeks training

and provide the round-trip ticket but other traveling costs should be paid by buyer.
