3/5 Layers Casting Stretch Film Plant

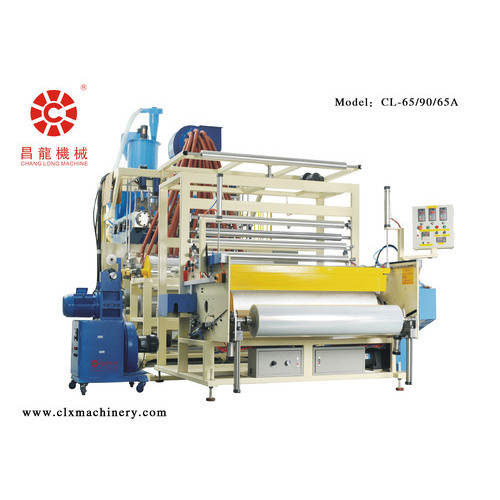

3/5 Layers Casting Stretch Film Plant Style CL-65/90/65A

Casting Film Making Plant Basic information:

1.Width of Die Head:1850mm;

2.Film Thickness:0.01-0.05mm;

3.Screw Diameter: 65/90/65mm;

3. Effective Film Width of PE Casting Stretch Film Plant:1 500mm(max) or 3*500mm ;

4.Structure of Film Layers of PE Packaging Wrapping Film Making Plant :A/B/C or A/C/B/C/A Co-extruded;

5.Raw Material of PE Packaging Wrapping Film Making Line:LLDPE;

6.Installation Dimension(L*W*H) of PE Packaging Wrapping Film Making Line:9.6*4.5m*4.5m

7.Weight of PE Packaging Wrapping Film Making Unit:14T

8.Extrusion Capacity(Max) of PE Packaging Wrapping Film Making Unit:250kg/h.

9.Linear Speed : 135m/min

3/5 Layers Casting Film Stretch Plant Features

1. The winding system of this PE Packaging Wrapping Film Making Unit is equipped with online air knife device which can automatic cut the main roller of film into different width film roller.

2. The alloy screws are processed with special mixing refining and are desgned for high plasticity.This PE Packaging Wrapping Film Making Line is consisted of imported static state mixer to ensure good plasticity and high quality output.

Casting Film Stretch Plant Application

The film produced by this PE Packaging Wrapping Film Making Line can be widely used in wrapping pallet packaging,storage packaging both manually and automatically.

Casting Film Stretch Plant Packing

The seller provides the simple pearl wool with film package & wooden motherboard for the CL-65/90/65A PE Packaging Wrapping Film Making Unit.

Casting Fillm Stretch Plant Certificate

Service Team of CL-65/90/65A PE Packaging Wrapping Film Making Line

 Warranty period and testing procedure:

The seller freely provides the fittings during the warranty for 12 months with the maintenance forever

when the equipment CL-65/90/65A PE Packaging Wrapping Film Making Unit is tested OK. (Human factor and force irresistant factor exception.)
