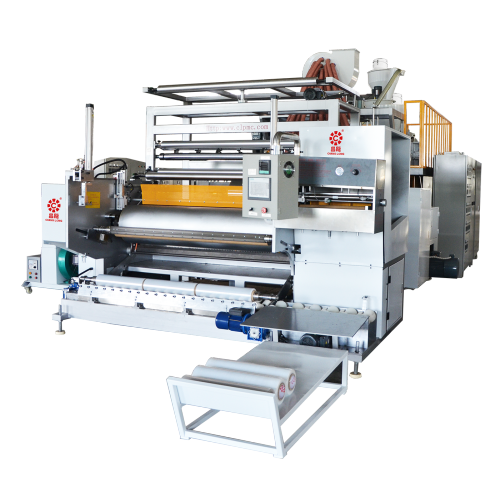

Co-Extrusion PE Stretch Film Production Line---CL-70/100/70C

Designed for three or five layers stretch film,cling film,and protective film, this machine CL-70/100/70C PE Plastic Packing Film Unit  is very easy to cooperate by combining Italy and Amercian high-tech and can also produce film with high plasticity.This CL-70/100/70C PE Plastic Packing Film Plant is also designed based on our long time manufacturing experience and customer's actual operate.

Main Technical Parameter of Co-Extrusion PE Stretch Film Production Line                CL-70/100/70C

Model: CL-70/100/70C

Liner Speed of Machinery CL-70/100/70C PE Plastic Packing Film Plant: 200m/min

Max Extrusion Capacity of CL-70/100/70C PE Plastic Packing Film Unit : 380kg/h

Max Rewind Diameter: 400mm

Screw Diameter of machine CL-70/100/70C PE Plastic Packing Film Unit: 70/100/70mm

Width of Die Head for CL-70/100/70C PE Plastic Packing Film Unit: 1850mm

L/D Ratio of Screw: 30:1

Motor Power of Main Machine for CL-70/100/70C PE Plastic Film Line : 37/90/37kw

Total Power: 50-220kw

Overall Dimensions(L*W*H) for CL-70/100/70C PE Plastic Packing Film Plant : 11.5*4.3*4.5m

Total Weight : 18.2T

Width of Film Produced by CL-70/100/70C PE Plastic Film Line: 1500mm

Thickness of Film Produced by CL-70/100/70C PE Plastic Packing Film Plant: 0.01-0.05mm

Structure of Film Layers: A/B/C or A/C/B/C/A

Features of Co-Extrusion PE Stretch Film Production Line CL-70/100/70C

1.Melt metering pump unit in this CL-70/100/70C PE Plastic Packing Film Unit uses sensor technology,precise control uint extrusion pressure to achieve a linar extrusion ,improve film properties.

2.Vacuum devices in this CL-70/100/70C PE Plastic Packing Film Plant makes the production of film to better fit the confluemce extended cooling reel,and can achieve better coolng effect and improve film performane.

3.Installation of fence of this CL-70/100/70C PE Plastic Packing Film Line around the screw stairs makes it user friendly and it's easy to operate those machines at any time to view the situation.

4.Touch screen centralized control,interpersoal friendly interface makes the CL-70/100/70C  PE Plastic Packing Film Plant simple to operate and more intelligent.

5.The products produced by the  CL-70/100/70C PE Plastic Packing Film Unit enjoys uniform thickness,good tensile strength,strong puncture resistencee especially meet the high-end and high quality requirements.

6.The machine CL-70/100/70C PE Plastic Packing Film Line  is equipped with casting cooling section with large diameter double-loop cooling system to make the reel surface temperature uniformity,and to improve the cooling effect.

Application for Co-Extrusion PE Stretch Film Production Line CL-70/100/70C

The film produced by CL-70/100/70C PE Plastic Film Line can be widely used for goods packing, manual packaging and so on.

Certificate of Co-Extrusion PE Stretch Film Production Line

After-Sales Service for Co-Extrusion PE Stretch Film Production Line             CL-70/100/70C

We possess a professional and experienced technical team to enable our service network cover all around the world.The rapid and convenient service will meet your demands.

2. Senior engineer installation guide & operator train.

3. Machine instruction , ready access.

Brand: ChangLong Machine

Warmly Welcome To Visit Our Factory
