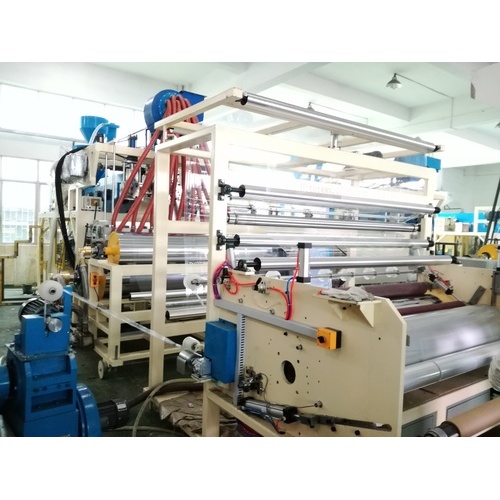

CL-65/90/65A LDPE Co-extrusion Stretch Film Machinery

Three Layer LDPE Co-extrusion Stretch Film Machinery CL-65/90/65A

Product Description of CL-65/90/65A LDPE Co-extrusion Stretch Film Machinery

1.Thickness adjustment scope:10µm-50µm;

2.Screw Diameter : 65/90/65mm

3.Width of effective film of LDPE Co-extrusion Stretch Film Machinery :1 500mm(max) or 3*500mm ;

4.Structure of film layers:A/B/C or A/C/B/C/A Co-extruded;

5.The fit material:LLDPE;

6.Extrusion capacity(max) of LDPE Co-extrusion Stretch Film Machinery:250kg/h.

7.Line Speed: 150m/min

8.Overall Dimensions(L*W*H) of LDPE Extrusion Wrapping Film Machinery : 9.6*4.6*4.4m

9.Total Weight of LDPE Pallet Wrapping Film Machinery : 16T

Features

1. Screws of LDPE Extrusion Wrapping Film Machinery adopt alloy specially mixed and refined with high plasticity design for qualified function  .

2. The winding system of LDPE Pallet Wrapping Film Machinery apply air knife online device, which can automatic cut different thickness film.

Application CL-65/90/65A LDPE Extrusion Wrapping Film Machinery

The film produced by CL-65/90/65A LDPE Co-extrusion Stretch Film Machinery can be widely used in pallet packaging,storage packaging, manual packaging and so on.

Packing of CL-65/90/65A LDPE Pallet Wrapping Film Machinery

The seller provides the simple pearl wool with film package & wooden motherboard

CERTIFICATE :

Service team

Warranty period and testing procedure:

The seller freely provides the fittings during the warranty for 12 months with the maintenance

when the equipment is tested OK. (Human factor and force irresistant factor exception.)

The seller provides the debugging and setting, Seller free to provide about one week training

but the round-trip ticket and other traveling costs should be paid by buyer.
