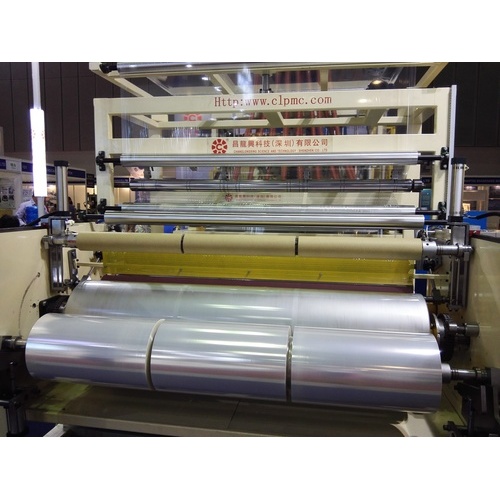

5 layer Film Machine Fully Automatic Extruder

 3 Layer and 5 layer cast Film Machine Fully Automatic 1500mm stretch Film Extruder-----CL-70/100/70A

This Stretch Film Unit CL-70/100/70A is designed based on our long time manufacturing experience and customer's actual feedback, as well as the application of the combination of Italy and Amercian high technology to produce high plasticity stretch wrapping film.It is designed for three or five layers stretch film , cling film , and protective film and this Stretch Film Unit is very easy to operate.

Main Technical Parameter of This Wrapping Film Unit CL-70/100/70A:

Model:1500mm 3/5layers  CL-70/100/70A

Structure of Film Layers: A/B/C or A/C/B/C/A

Liner Speed of Machinery: 200m/min

Max Extrusion Capacity: 380kg/h

Max Rewind Diameter: 400mm

Screw Diameter: 70/100/70mm

L/D Ratio of Screw: 30:1

Width of Film: 1500mm

Overall Dimensions(L*W*H): 11.5*4.3*4.5m

Motor Power of Main Machine : 37/90/37kw

Total Power: 50-220kw

Special Features of Stretch Wrapping Film Making Unit CL-70/100/70A

1.Melt metering pump unit is equipped with this Stretch Wrapping Film Making Unit and it applys the technology of precise sensor to control the  extrusion pressure of this Wrapping Film Unit  to achieve a stable extrusion flow which improves film properties a lot.

2.Vacuum devices is applied to increase the cooling effect of the first cooling roller as it absorbs the hot air away from the surface of cooling roller and in this way, the cooling roller can remain low temperature all the time, which in return helps improve the quality of product film.

3.The installation of fence around the screw stairs is designed at the aim of achieving user friendly and in this way,the operation  pocess will be much safe and can also gurantee the safety of operator.

4.The Stretch Wrapping Film Making Unit  is controlled through Simens PLC using touch screen which is interpersoal friendly and can be operated simplely and the wrapping film unit will be more intelligent.

5.Two large cooling roller is equipped for better cooling effect.

Application

The Stretch Wrapping Film Making Unit can be widely used for goods & pallets packing both manual and mechnically.

Certificate

After-Sales Service

We possess a professional  technical team which enables our service net covering all around the world.The rapid and convenient service will meet your demands.

2. Senior engineer installation guide & operator training.

3. Machine instruction , ready access.

Warmly welcome to visit our factory
