Updated 70/100/70A PE Stretch Film Machine

Updated 70/100/70A PE Stretch Film Machine ---PE Stretch Film Making Machine

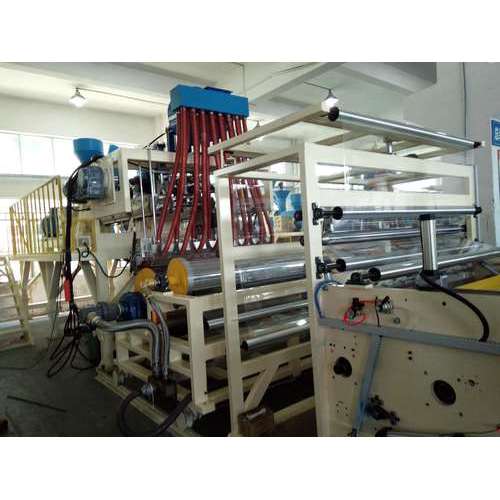

70/100/70A PE Stretch Film Machine

70/100/70A PE Stretch Film Machinery

70/100/70A PE Stretch Film Unit

Combined with Italy and Amercian high-tech to produce high plasticity,this machine is based on our long time manufacturing experience and customer's actual operate, designed for three or five layers stretch film , cling film , and protective film, which is very easy to operate.

Technical Details

Name of Machine Model: CL-70/100/70A

Width of T-die: 1850mm

Width of Product Film: 1500mm

Available Thickness of Film: 0.01-0.05mm

Screw Diameter: A  Screw 70mm

                        B  Screw 100mm

                        C  Screw 70mm

L/D Ratio of Screw: 30:1

Motor Power of Main Machine : 37/90/37kw

Total Power: 50-220kw

Overall Dimensions(L*W*H): 11.5*4.3*4.5m

Total Weight : 18.2T

Features

1.Vacuum devices help  improve the coolng effect of the first cooling roller and then improve the quality of product film.

2.The installation of fence around the screw stairs is designed  friendly for user which ensures the safety of operation.

3.Simens PLC and touch screen centralizedly control the whole machine which brings a easy and more intelligent operation and so on .

4.Large shaft diameter within double-loop cooling system ensures a stable  temperature on the surface of cooling roller which greatly improves the cooling effect.

Application

Product film can be widely used in manual and mechnical packaging and so on.

Certificate

After-Sales Service

2. Machine instruction provided.

3. Senior engineer installation guide & operator trainning.

4. 12 months warranty period , lifelong maintenance services , engineer to door maintenance.

Professional and experienced technical team provides service covering all around the world to meet your requirement rapidly.
