1500mm Larger Capacity Stretch Film Machinery
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ShenZhen,China |
|---|---|
| Productivity: | 380kg/h |
| Supply Ability: | 20-30sets/m |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ISO90001:2008 |
| Transportation: | Ocean |

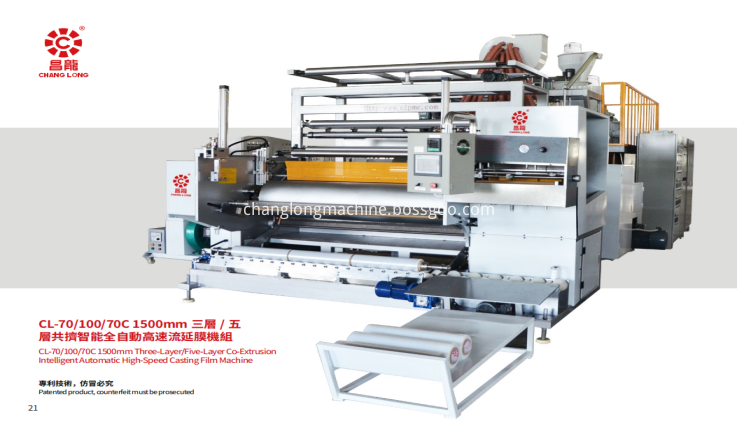

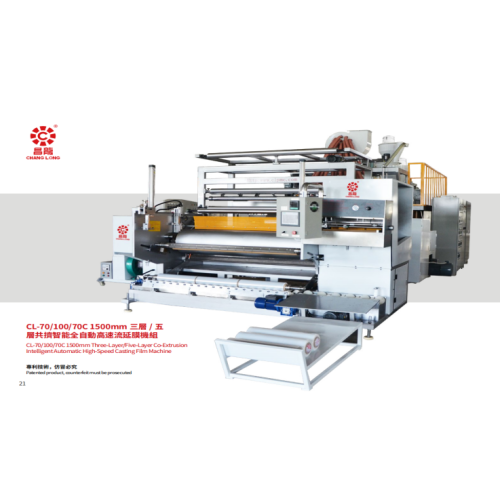

1500mm China Co-extrusion intelligent automatic high-speed casting Film Machine
Combined with Italy and Amercian high-tech to produce high plasticity,this machine is based on our long time manufacturing experience and customer's actual operate, designed for three or five layers stretch film , cling film , and protective film, which is very easy to operate.
Main Technical Parameter:
Model: CL-70/100/70C
Width of Die Head: 1850mm
Width of Film: 1500mm
Thickness of Film: 0.01-0.05mm
Structure of Film Layers: A/B/C or A/C/B/C/A
Liner Speed of Machinery: 200m/min
Max Extrusion Capacity: 380kg/h
Max Rewind Diameter: 400mm
Screw Diameter: 70/100/70mm
L/D Ratio of Screw: 30:1
Motor Power of Main Machine : 37/90/37kw
Total Power: 50-220kw
Overall Dimensions(L*W*H): 12*5.0*4.5m
Total Weight : 17T
Features
1.Advanced three-screw stretch film machine's vacuum devices help improve the coolng effect of the first cooling roller and then improve the quality of product film.
2.The installation of fence around the screw stairs is designed friendly for user which ensures the safety during operation.
3.Simens PLC and touch screen centralizedly control the whole machine which makes it more easylier and more intelligent to operate .
4.Plat thickness,good tensile strength as well as strong puncture resistencee are the advantages of our product film which meets the high quality requirements.
5.Large shaft diameter within double-loop cooling system ensures a stable temperature on the surface of cooling roller which greatly improves the cooling effect.
6.Melt Pump with advanced technology is used in the screw of extruder which helps a lot with the quality of product film.
Application
The machine's film can be widely used for goods packing, manual packaging and so on.
Certificate
The company is a national high-tech enterprises
This product has passed the CE certification and ISO certification
Workshops
Packing
The seller provides the simple pearl wool with film package & wooden motherboard.
After-Sales Service
The seller freely provides the fittings during the warranty for 12 months the maintenance
forever when the equipment is tested OK. (Human factor and force irresistant factor exception.)
