Two Layers Co-extrusion Stretch PE Film Machinery

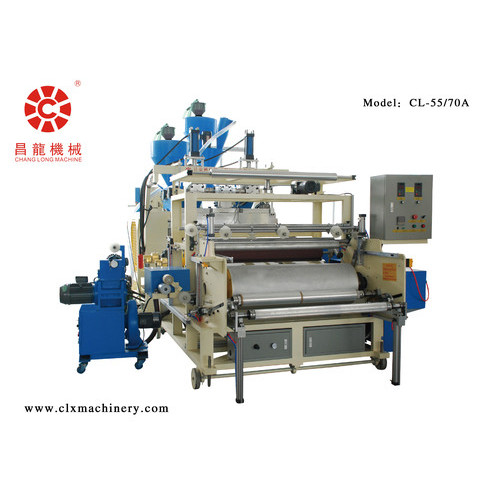

Two Layers Three layer Co-extrusion Stretch PE Film Machiney CL-55/70A

.Main Technical Parameter:

Width of Die Head: 1250mm

Width of Film: 1000mm

Thickness of Film: 0.01-0.05mm

Structure of Film Layers: A/B or A/B /C

Liner Speed of Machinery: 120m/min

Max Extrusion Capacity: 135kg/h

Screw Diameter: 55/70mm

L/D Ratio of Screw: 30:1

Motor Power of Main Machine: 15/22kw

Total Power: 13-70kw

Overall Dimensions(L*W*H): 7.3*4*3.6m

Total Weight: 8T

Machine Specification:

1- The fit materials: LLDPE

2- PLC Automatic roll changer, automatic filter changer,

3-Automatic loader and auto edge film recycling unit.

4-150CC gear pump and American sensor system to control the extruder output at 100% uniformity,

which make the film more uniformty, good tensile strenth and good anti- puncture.

Features:

1- The alloy screwadopts special mixing refining function and high plasticity design to ensure good plasticization,

good transparency and greatly improving the capacity.

2-T-Die adoptimport top speical mould steel, which professional materials on PE plasticity. By our high precision process

and treatment to ensure the long service life of T-Die without any deformation.

3- The Cooling rolleris bi-directional loop design and helix runner inside cooling steel roller to ensure the same temperature of roller surface.

Optional configuration:

1) Touch screen to control electric systerm.

2) Manipulator equipment to change the roll and put the finished products down the ground.

3) Air knife to cut the film for thickness more than 50um.

4) Auto thickness measurement and auto thickness adjustment T-die.

Application

The stretch film making by this machine is used for packaging and storing cooked food, uncooked food, meat, vegetable and

fruit and seafood ets. In supermarket, hotel, dinning-hall and food factory.

Workshop

Certificate

Plastic Machine PE Stretch Film Machine passes CE certificate, most professional, high output!

Packing

Exhibitions

After-Sales Service

Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time,

give a good technical training to ensure the product in best state perennially.

We will respond to customer`s service requests and complaint in the shortest possible time, give a clear reply and solution to deal with

in time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate.

We will commit to improve our services quality, so that our customers will be most satisfied.

We offer warranty on product quality and lifelong maintenance services.
